Description

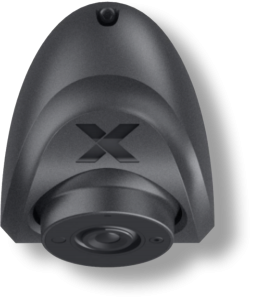

FleetFLIX Lite auxiliary cameras are connected to FleetFLIX Lite and FleetFLIX Lite Pro+ dashcams. When connected to the dash camera, the cameras enable live video and recording from the portal of additional perspectives during trips. The cameras are installed around the vehicle in key locations (side and rear). All auxiliary cameras include a high-definition 1920×1080V lens. Auto gain, 3D noise reduction, and backlight compensation are all supported. Provide your fleet with 360° video coverage.

Key Features

• Image sensor: 1/2.9"" pixel CMOS
• Resolution: 1920H × 1080V
• Minimum illumination: 0 LUX (IR on), 0.1 LUX (IR off)
• Auto electronic shutter, auto exposure, and auto white balance
• Infrared Distance: 5–10M
• IP rating: IP69K
• Compact design and simple installation
• Vehicle damping performance optimization

Technical Specifications

• Signal-to-noise ratio: ≥48dB
• Electronic shutter: 1/30s ~ 1/10000s
• Day/night mode: Day/Night Switching IR-cut
• Operating temperature: -40°C to +70°C
• Operating humidity: 0% - 90%
• Power supply: PON (DC12V)
• Video output: 1.0VP-P composite, 75Ω, 4PIN aviation cable
• Power consumption (Max): <1.5W (OFF), <3W (ON)
• Compression Output bit rate: 32kbps-6mbps
• Dimensions: 2.59 in × 2.29 in × 1.8 in (66mm × 58mm × 46mm)
• Weight: 0.45 lbs (205g)

Lens Options

• 2.2mm M12@ F2.0 (FOV: 135°, VFOV: 76°, DFOV: 168°)
• 2.8mm M12@ F2.0 (FOV: 112°, VFOV: 54°, DFOV: 124°)
• 3.6mm M12@ F2.2 (FOV: 83°, VFOV: 46°, DFOV: 95°)
