Description

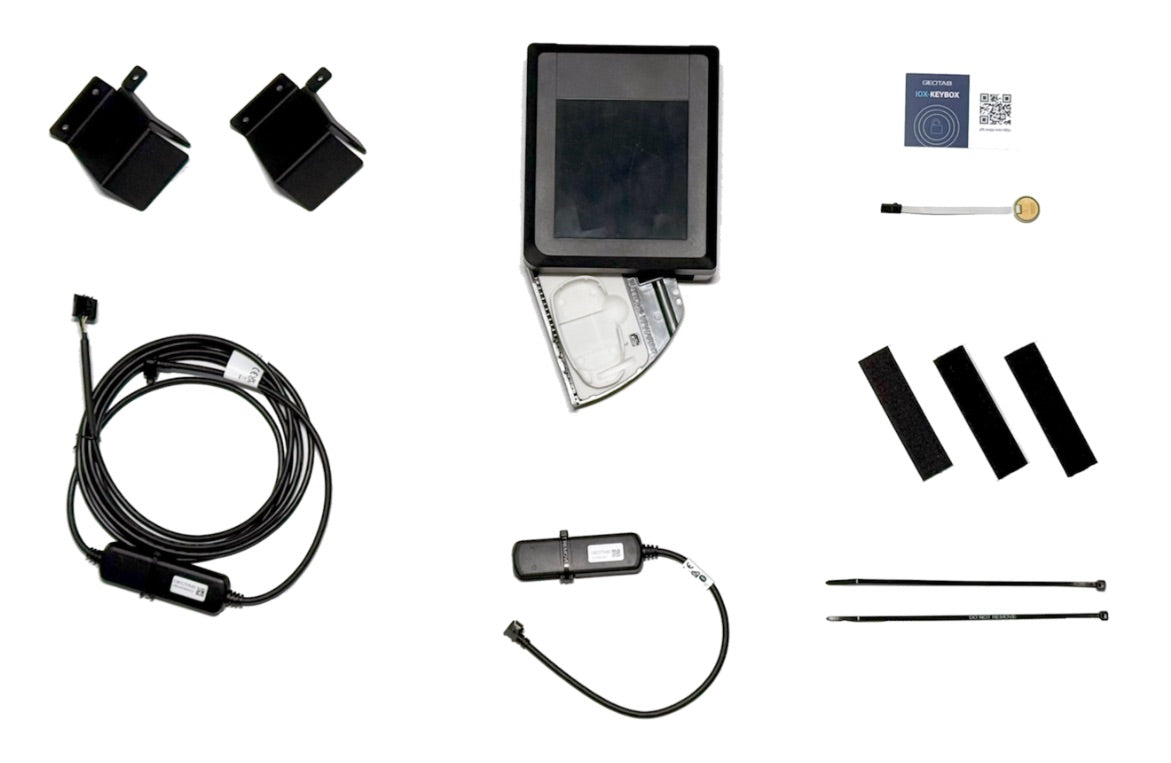

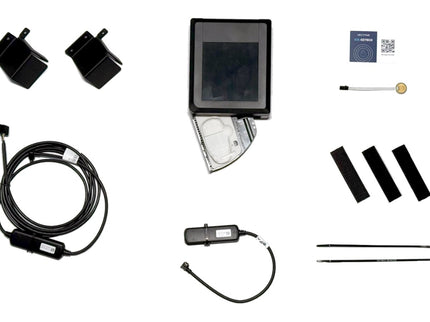

The IOX-KEYBOX enables shared vehicle access and works seamlessly with Geotab’s Keyless Platform. It allows the vehicle key fob to be integrated without damage. The key can be extracted from and returned to the unit for vehicles using a bladed key, or provided to the driver during use. The unit can also be moved between vehicles with the same key fob type (size, shape, and unlock/lock button placements). Future versions may support additional key fob types.

Features

• Allows integration of vehicle key fobs without damage
• Key can be extracted and returned for driver use
• Unit can be transferred to vehicles with the same key fob type
• Future support for new key fob types (not yet available)

Product Specifications

• Physical:
  • Dimensions: 164 × 139 × 61 mm
  • Weight: 0.6 kg (excludes key fob weight)
  • Key fob compatibility: IOX-KEYBOX Key fob Catalog
  • Temperature range: -30℃ to +60℃ (key fob dependent for ranges from -15℃ to -30℃)
  • Protection class: IP31
• Electrical:
  • Voltage range: 9 V – 16 V (24 V not supported)
  • Current:
    • Low power sleep: 22 mA (including GO device)
    • Active key fob presses: ≤ 3 A (peak motor actuation)
  • Bluetooth™ communications: Starting with Firmware version 0.32, handled externally by IOX-BT (included in kit)
• Interfaces: CAN 2.0 A/B, CAN FD
• Connectors:
  • Male Mini-USB Type-B connector: Daisy chain power and CAN in
  • Female Mini-USB Type-B connector: Daisy chain power and CAN out
• Harness Length: 3.3 m
• Certifications: CE, FCC, ISED, RoHS, REACH, WEEE, UKCA, E-Mark
