Description

The IOX-KEYLESS supports remote access to a vehicle and multiple markets, including corporate car sharing, consumer car sharing, and traditional car rental services.

Features

• Easy-to-install IOX™ accessory for the Geotab GO device
• Bluetooth® connection to scan for available Android/iOS devices to connect to the GO™ device and send vehicle commands
• Starter inhibit functionality (requires accompanying expansion harness)

Product Specifications

• Bluetooth® Module: Version 4.0 Single Mode
• Size: 121 mm L × 100 mm W × 24.5 mm H
• Housing: Black, moisture-resistant thermoplastic overmold
• Interfaces: CAN: 500 kbps (for daisy-chaining)
• Nominal Input Voltage: 12 V / 24 V
• Current Draw (on GOx daisy chain):
  • Operating mode (typical/nominal): 49 / 24 mA at 12 / 24 V
  • Operating mode (max): 75 / 40 mA at 12 / 24 V
  • Sleep mode (min): 0.6 / 0.4 mA at 12 / 24 V
• Key fob Compatibility: Compatible with any 3 V key fob paired to a centralized, automatic locking system
• Temperature Rating: −40 ℃ to +85 ℃

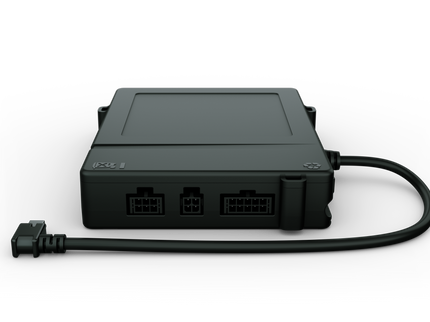

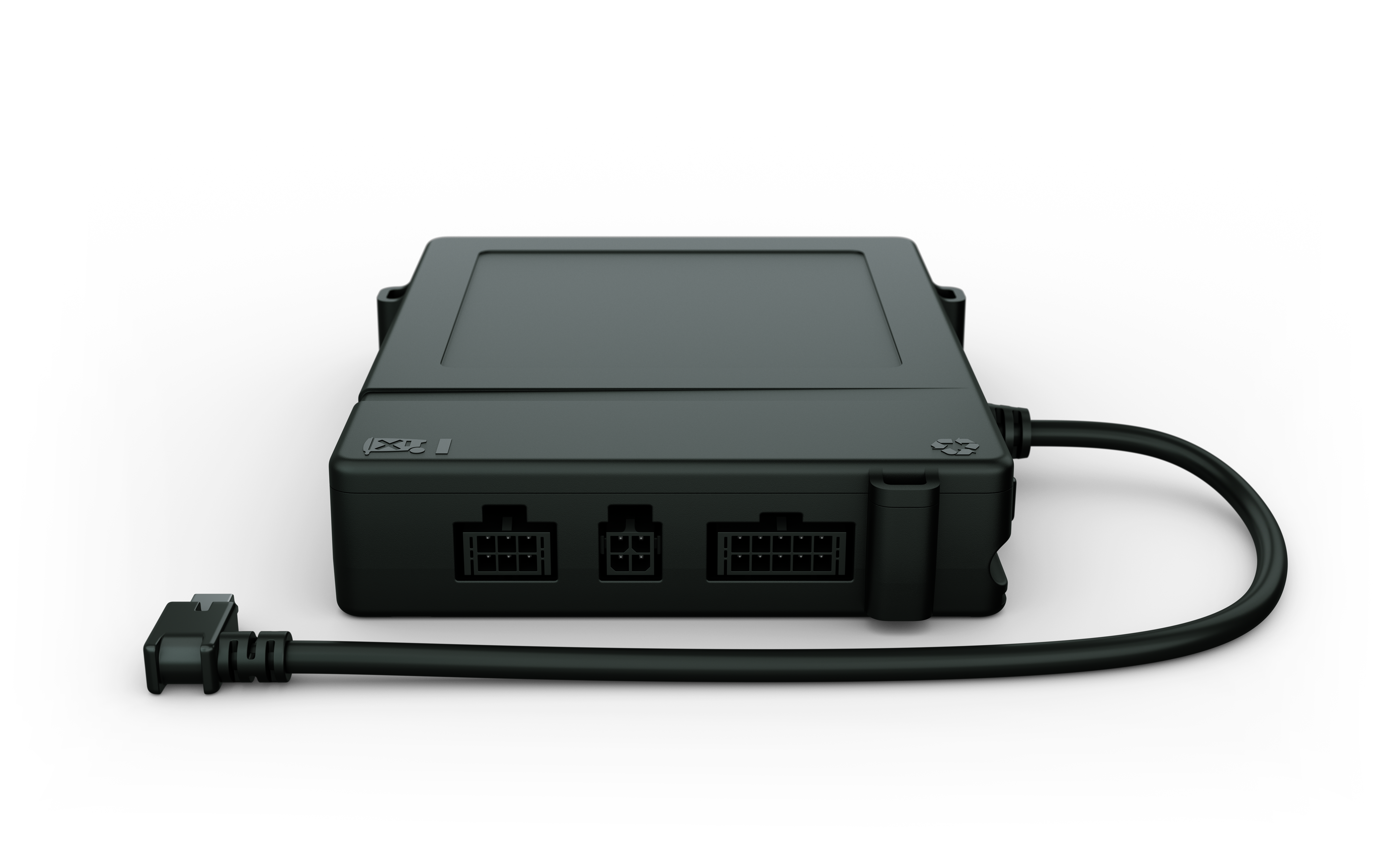

• Connectors:
  • Male Mini-USB Type-B connector: Daisy chain power and CAN in
  • Female Mini-USB Type-B connector: Daisy chain power and CAN out
  • 10-Pin socket: Starter inhibit relays
  • 4-Pin socket: Proximity card reader (future support)
  • 6-Pin socket: Vehicle Secondary CAN connection/GPIO (future support)
• Compatible Devices: GO9® and newer. Not compatible with IOX-BT. GO9® can source a maximum total current to the IOX in Daisy Chain: 2500 mA at 12 V / 24 V
• Certifications:
  • RAMATEL: C-29083
  • E-Mark: E57 10R–060091
  • FCC ID: QOQBLE121LR
  • IC: 5123A-BGTBLE121LR
  • Compliance: FCC, ISED, CE, E-Mark, REACH, RoHS, WEEE, UKCA, ANATEL, RAMATEL

Note: For each IOX in the daisy chain, add the max. current draw and ensure the total does not exceed the max. total IOX current draw.
