Description

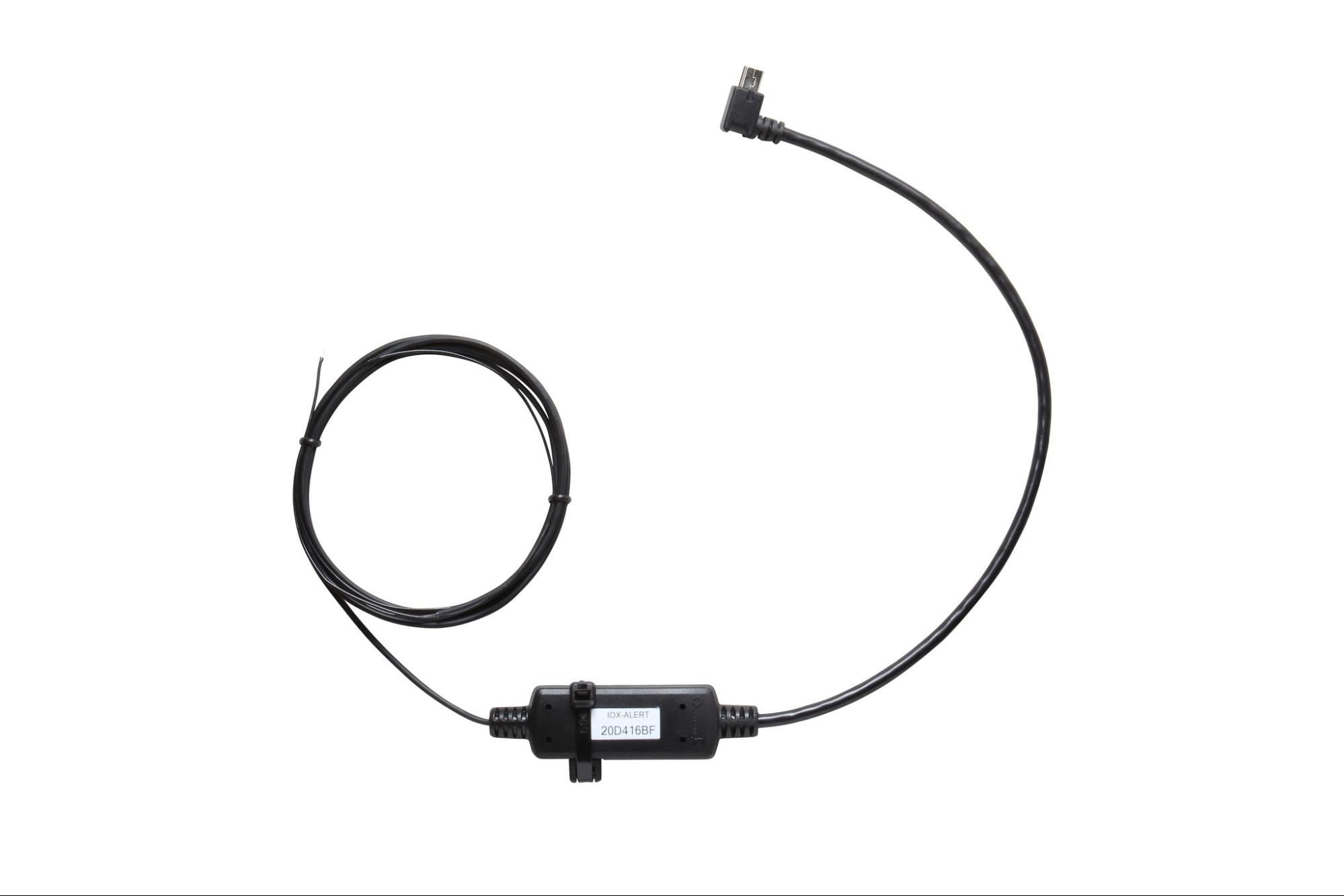

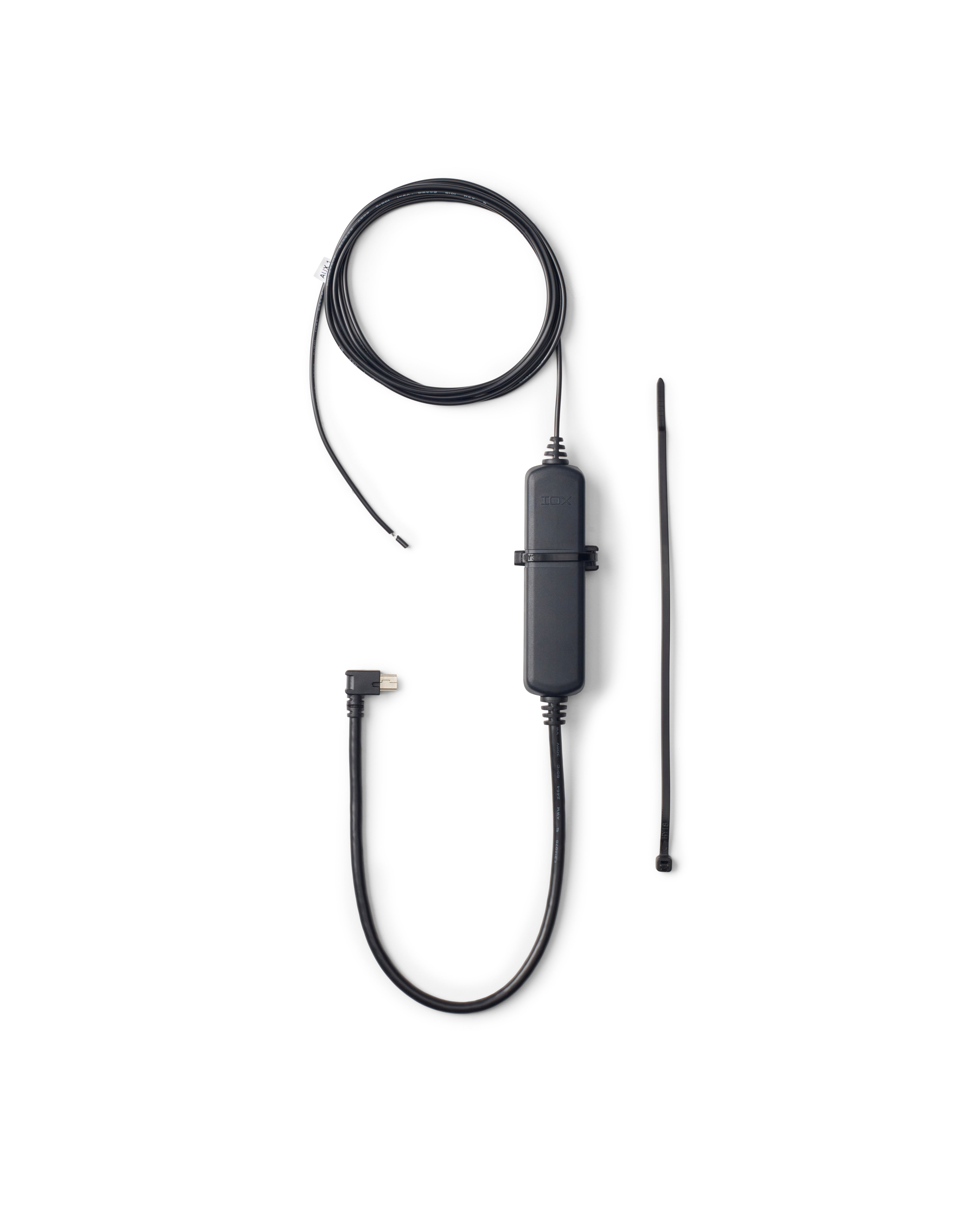

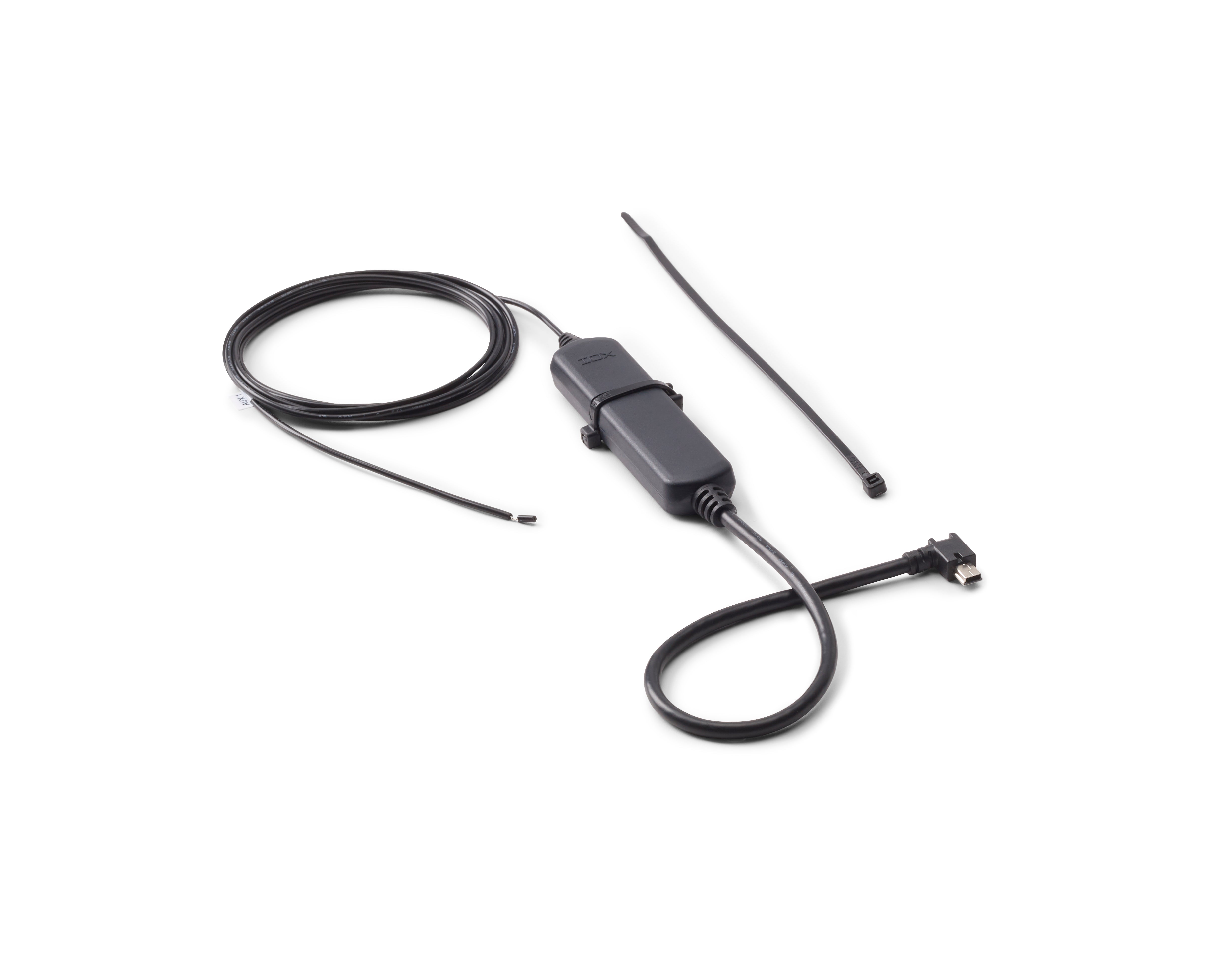

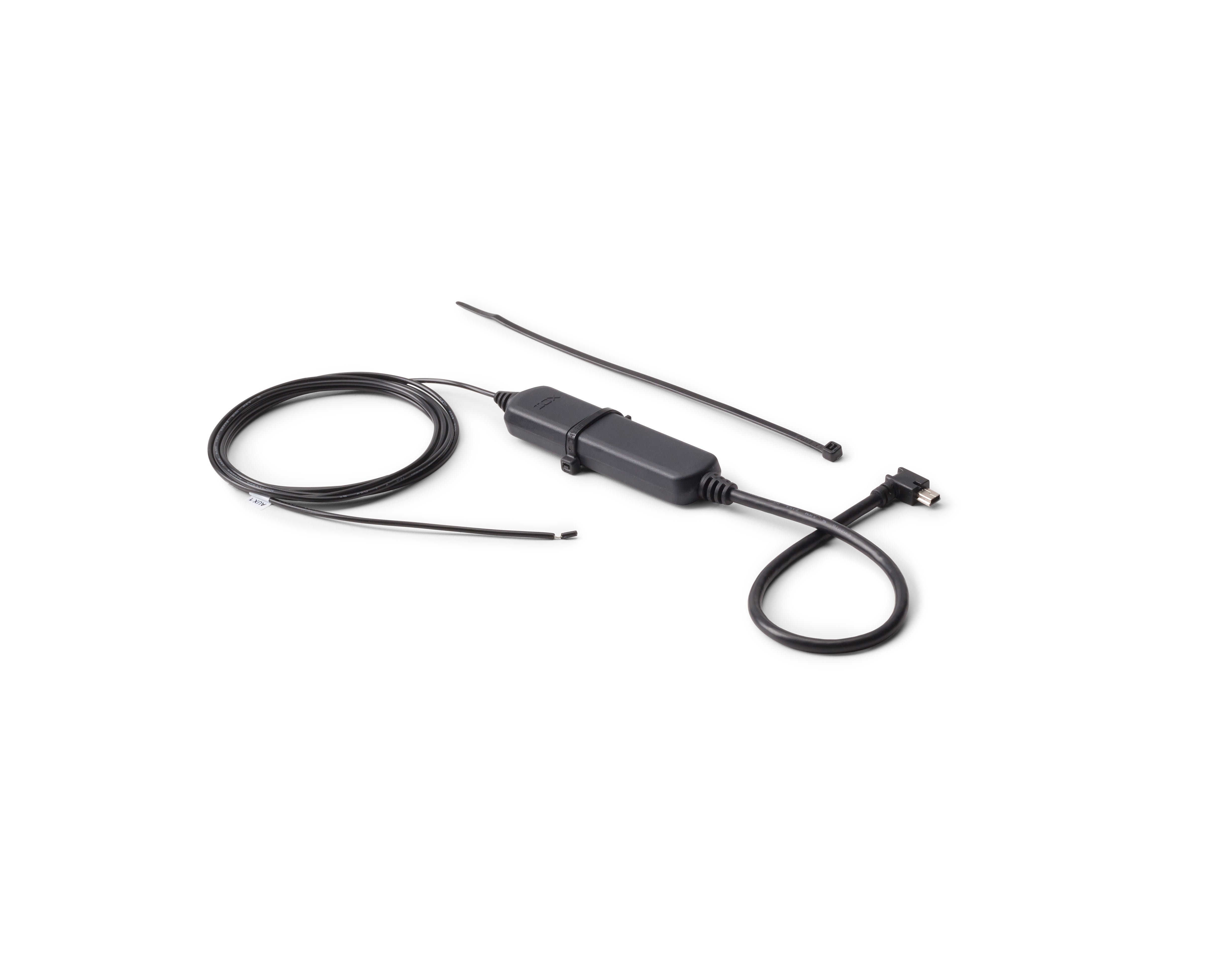

The IOX-ALERT allows a driver to send a notification to a dispatcher through the press of an alert button (not included). Once pressed, the alert button signals the Geotab GO™ device to send a specific engine diagnostic to MyGeotab™. Exception rules can be set to trigger in response to this diagnostic. The IOX-ALERT monitors one switch input for alerting purposes.

Product Specifications

• Weight: 50 g
• Size: Overall length: 2380 mm (L); Widest point: 31 mm (W) × 16 mm (H)
• Housing: PC+ABS clamshell casing
• Interfaces: CAN: 500 kbps (for daisy chaining)
• Inputs Available: 1 Alert
• Nominal Input Voltage: 12 V / 24 V
• Resistance: Input Impedance: 37 kΩ; Driving Circuit Resistance must be less than 100 Ω
• Input Logic Levels: GND — Float; Low: Float, High: <100 mV
• Current Draw (IOX-ALERT on GOx daisy chain):
  • 40 mA at 12 V / 24 V — Operating mode (typical/nominal)
  • 100 mA at 12 V / 24 V — Operating mode (max)
  • 0.4 mA at 12 V / 24 V — Sleep mode (min)
• Temperature Rating: –40 ℃ to +85 ℃
• Connectors:
  • 1 Labeled wire: Black - AUX 1

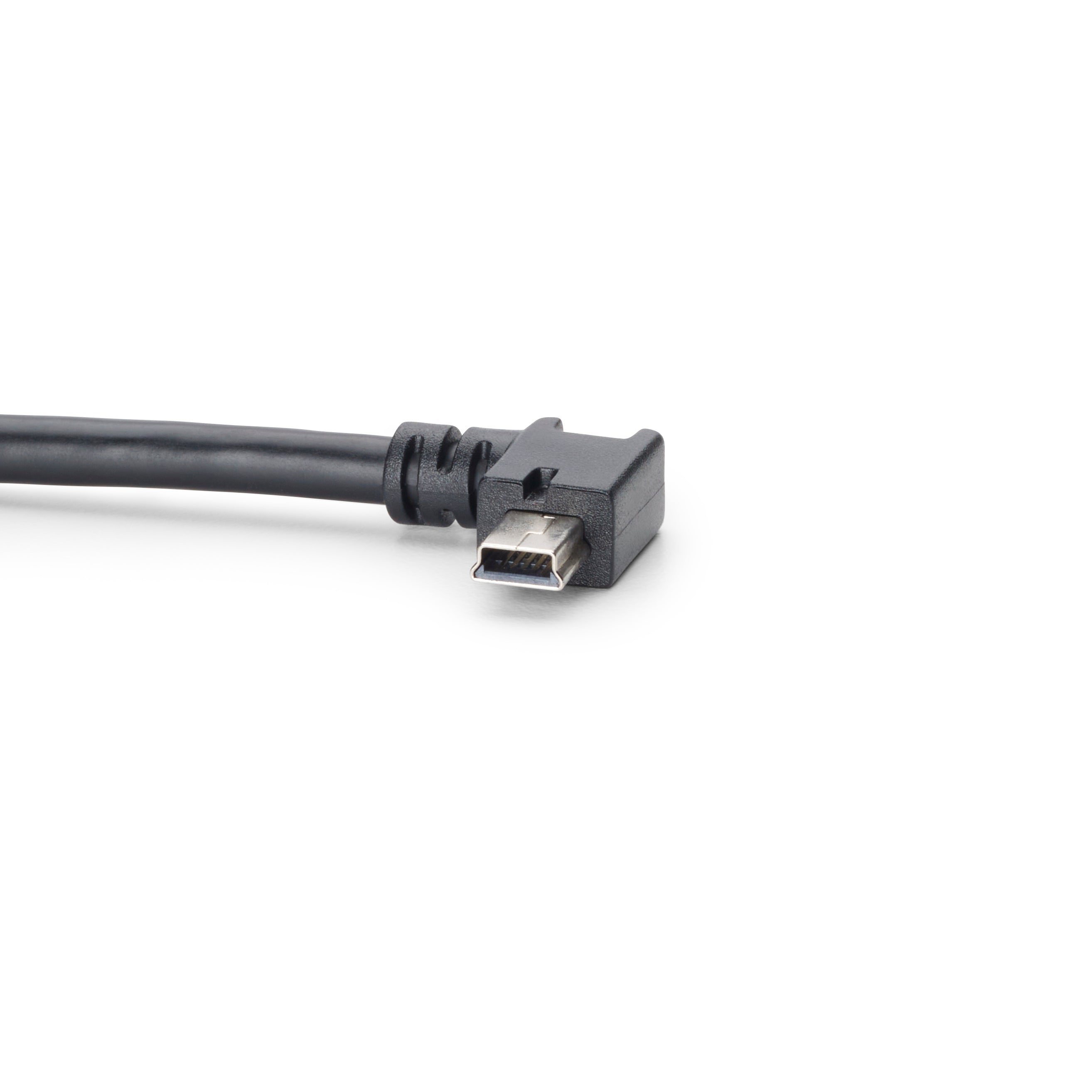

  • Male Mini-USB Type-B connector: Daisy chain power and CAN in
  • Female Mini-USB Type-B connector: Daisy chain power and CAN out
• Installation: Male Mini-USB connector connects to the GO Device or another IOX™ harness
• Compatible Devices: All GO7® and newer devices and variants
• GO9® Power Limit: Can source a maximum total current to the IOX daisy chain of 2750 mA at 12 V / 24 V

WARNING!

This product was not designed to be used in a fail-safe manner. Inadvertent delay or even failure to notify users or intended recipients on activation of the alert button could occur in some cases. This product is not recommended for use in safety-critical applications because it could cause inappropriate expectations by drivers or passengers.

NOTE: For each IOX in the daisy chain, add the max current draw, and do not exceed the maximum total IOX current draw.
