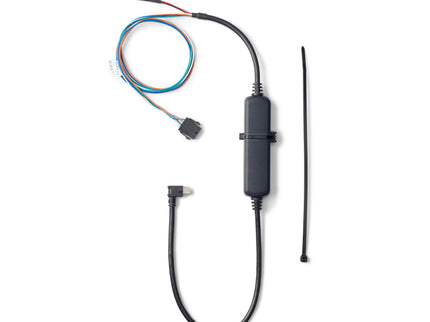

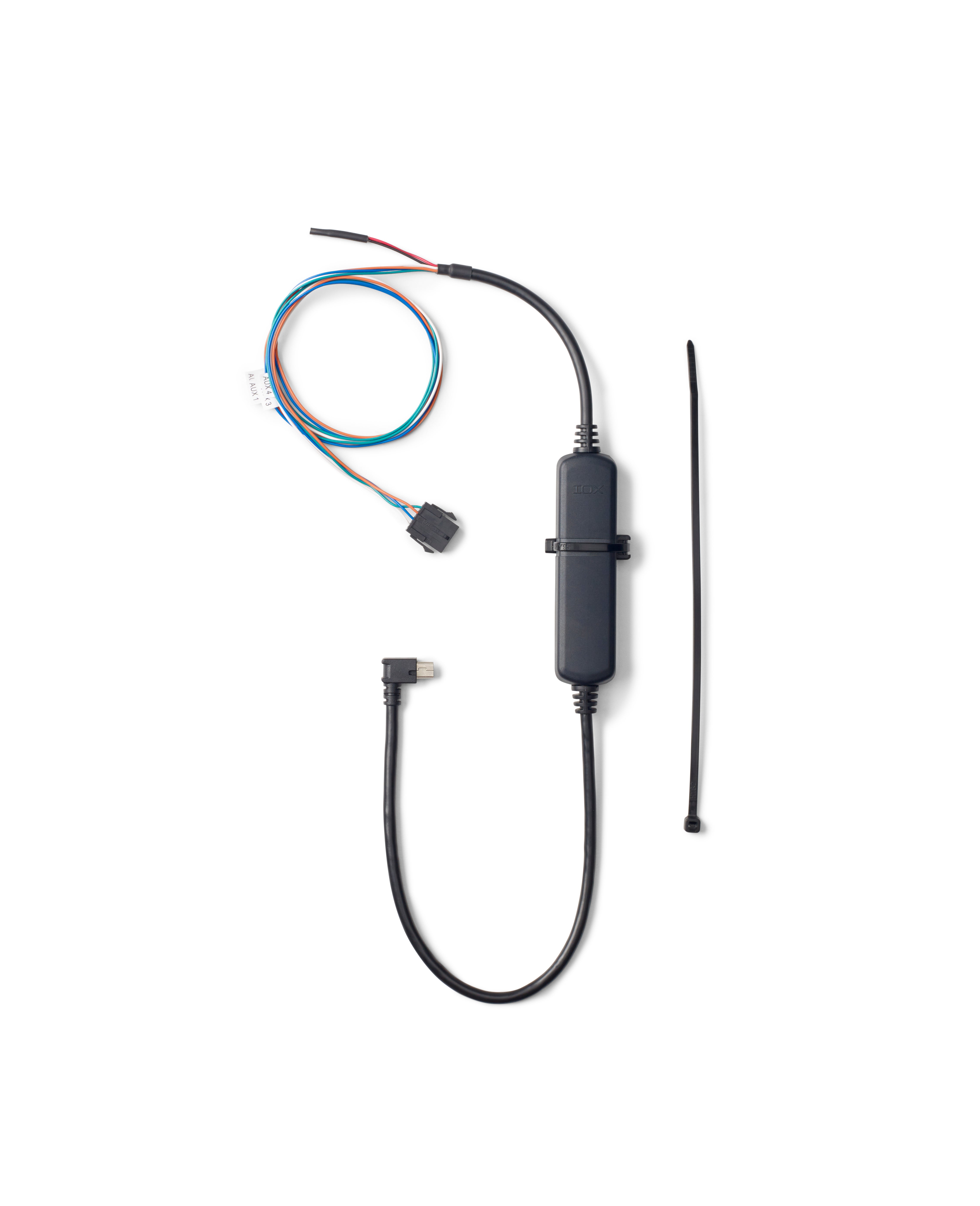

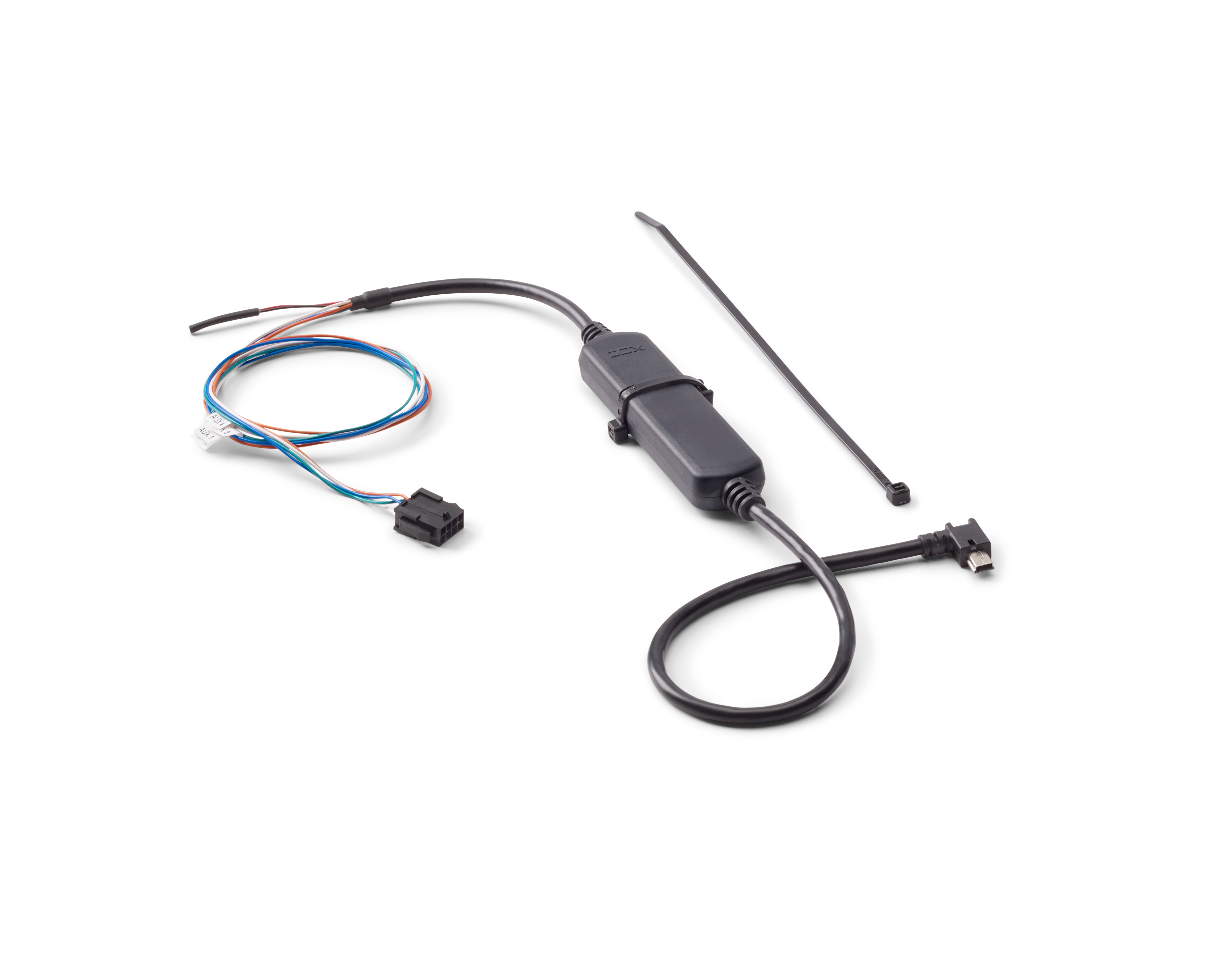

Description

Monitor up to 8 analog inputs (4 inputs with one IOX-ANALOG, 8 inputs with two IOX-ANALOG in a daisy chain). Possible uses include monitoring secondary battery voltages, liquid flow meters, and temperature or pressure readings.

Product Specifications

• Weight: 50 g
• Size: Overall length: 1140 mm (L); Widest point: 31 mm (W) × 16 mm (H)
• Housing: PC+ABS clamshell casing
• Interfaces: CAN: 500 kbps (for daisy-chaining)
• Inputs Available: AUX1, AUX2, AUX3, AUX4
• Nominal Input Voltage: 12 V / 24 V
• Resistance: Input Impedance of each AUX: 30.3 kΩ; Driving circuit resistance must be less than 100 Ω
• Current Draw (IOX-ANALOG on GOx daisy chain):
  • 40 mA at 12 V / 24 V — Operating mode (typical/nominal)
  • 100 mA at 12 V / 24 V — Operating mode (max)
  • 0.4 mA at 12 V / 24 V — Sleep mode (min)
• Temperature Rating: -40 ℃ to +85 ℃
• Connectors:

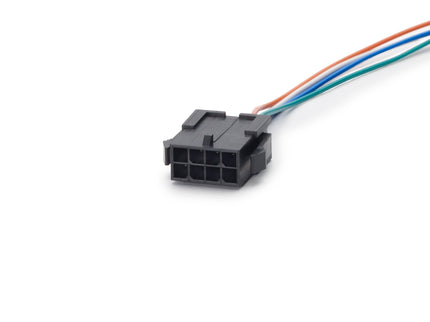

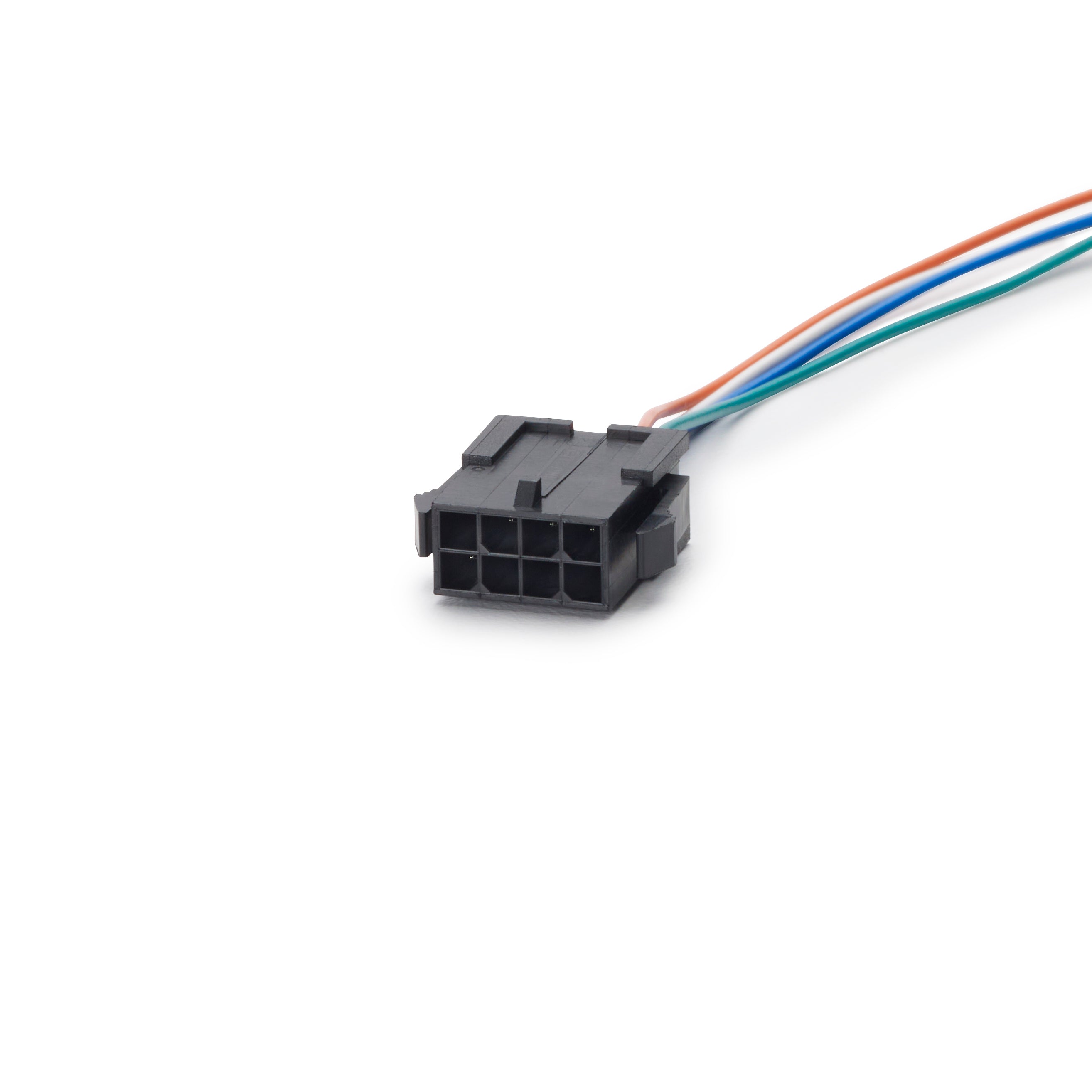

  • Molex 8-pin Connector 43020-0800
  • Molex Male Terminal 43031-0001
  • Pin 4: White - AUX 4
  • Pin 5: Green - AUX 3
  • Pin 6: Orange - AUX 2
  • Pin 7: Blue - AUX 1

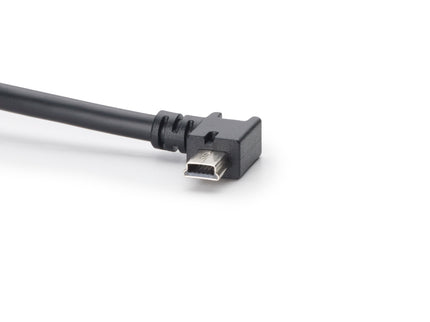

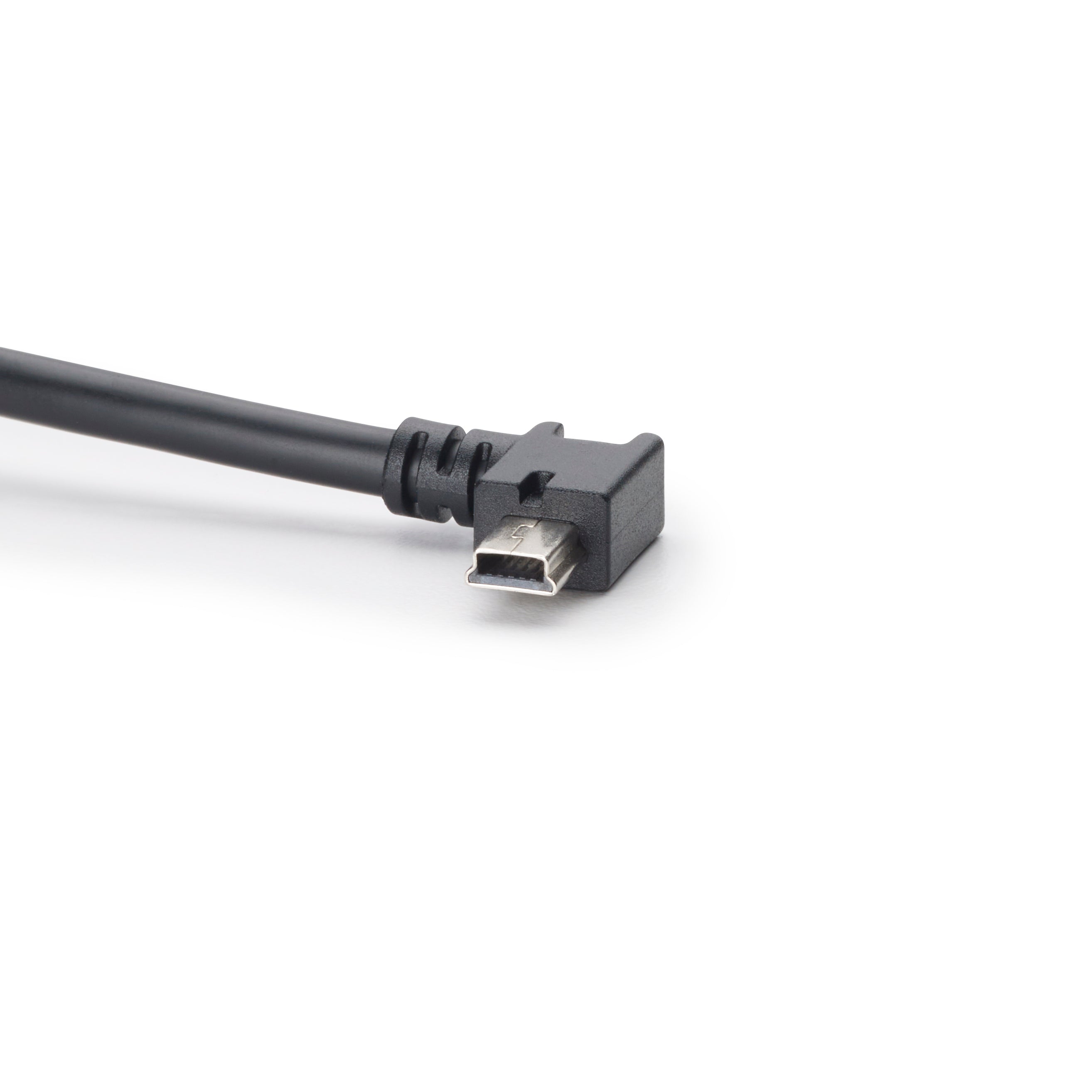

  • Male Mini-USB Type-B connector: Daisy chain power and CAN in
  • Female Mini-USB Type-B connector: Daisy chain power and CAN out
• Installation: Male Mini-USB connector connects to the GO device or another IOX™ harness. Input must connect to the intended circuit.
• Compatible Devices: All GO7® and newer devices and variants
• GO9® Power Limit: Can source a maximum total current to the IOX daisy chain of 2500 mA at 12 V / 24 V

NOTE: For each IOX in the daisy chain, add the maximum current draw, and do not exceed the maximum total IOX current draw.
