Description

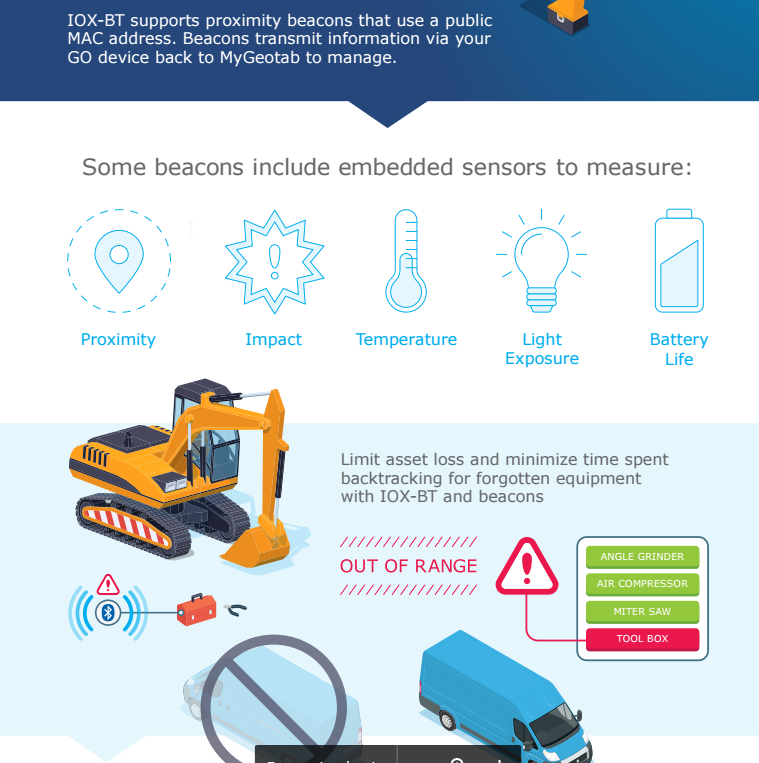

The IOX-BT monitors Bluetooth® proximity beacons with public MAC addresses and supports select sensor-enabled beacons. When attached to tools and equipment, these beacons help increase asset utilization, reduce misplaced equipment, boost productivity, lower operational costs, and improve on-time delivery. The current version of IOX-BT was introduced in February 2025. Details on the legacy IOX-BT product can be found in the documentation section.

Features

• Easy to install
• Monitors proximity beacons with public MAC addresses
• Supports sensor data from select beacons
• Supports up to 60 in-range beacons
• Compatible with the Geotab® BLE Add-On Protocol

Product Specifications

• Weight: 35 g
• Size: Overall length: 390 mm (L); Widest point: 31 mm (W) × 16 mm (H)
• Housing: Black, moisture-resistant thermoplastic overmold
• Interfaces: CAN: 500 kbps (for daisy-chaining)
• Nominal Input Voltage: 12 V / 24 V
• Power Output: Daisy-Chaining: 2500 mA @ 12 V / 24 V
• Current Rating:
  • Maximum current: 100 mA
  • Operating mode: 52 mA
  • Sleep mode: 0.5 mA
• Temperature Rating: −40 ℃ to +80 ℃
• Bluetooth® Module: BLE Version 5.1
• Range:
  • In range: <100 m
  • Out of range: >200 m
• Connectors:

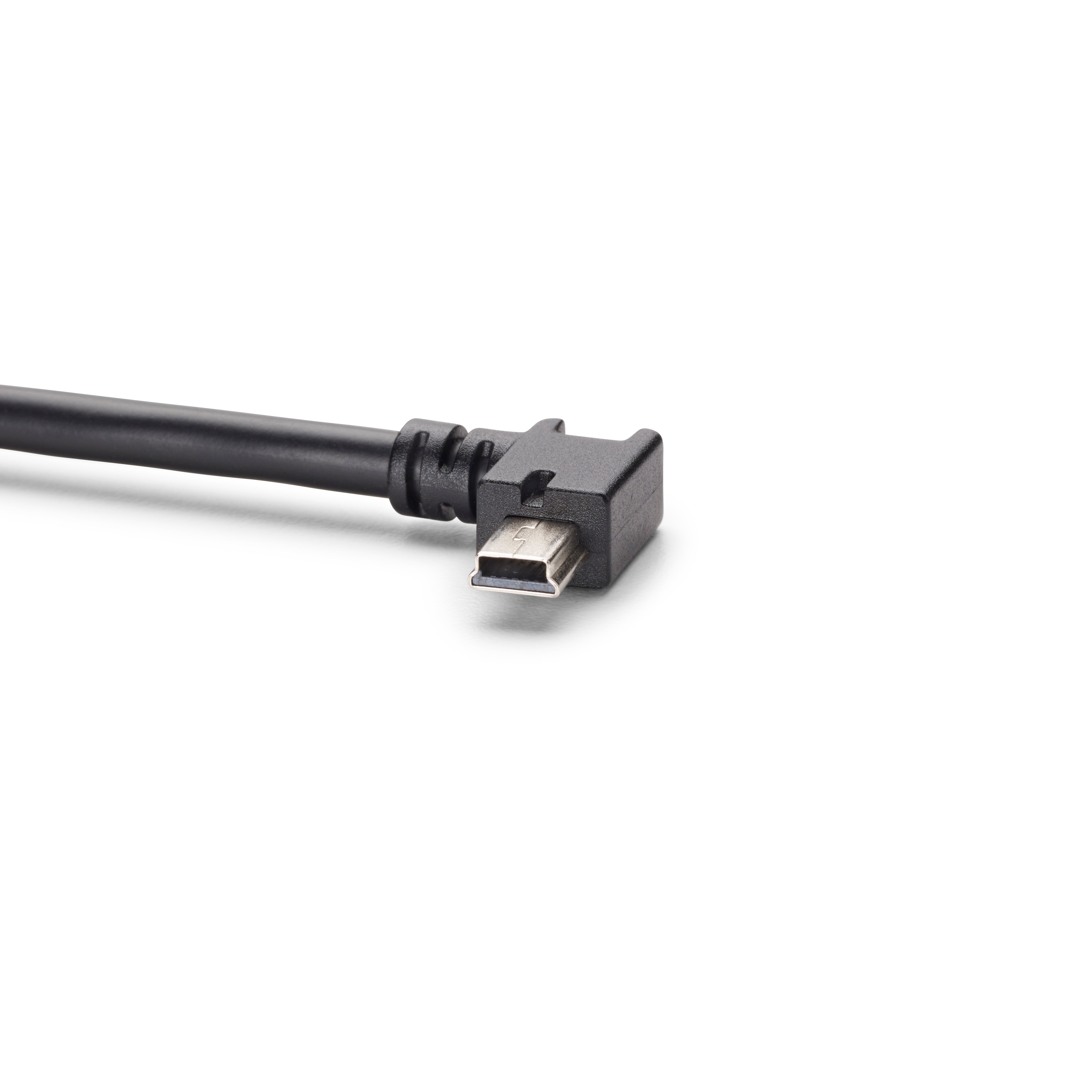

  • Male Mini-USB Type-B connector: Daisy chain power and CAN in
  • Female Mini-USB Type-B connector: Daisy chain power and CAN out

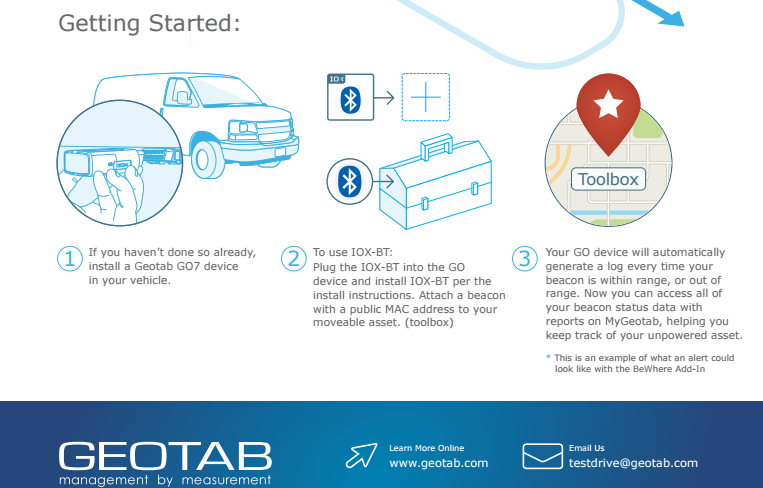

• Installation: Male Mini-USB connector connects to the GO™ device or another IOX™ harness
• Compliance: FCC, ISED, CE, REACH, RoHS, WEEE, UKCA, Bluetooth®, IMDA
• Models: GXSBT1
• Compatible Devices: All GO9B® and newer devices and variants
