Description

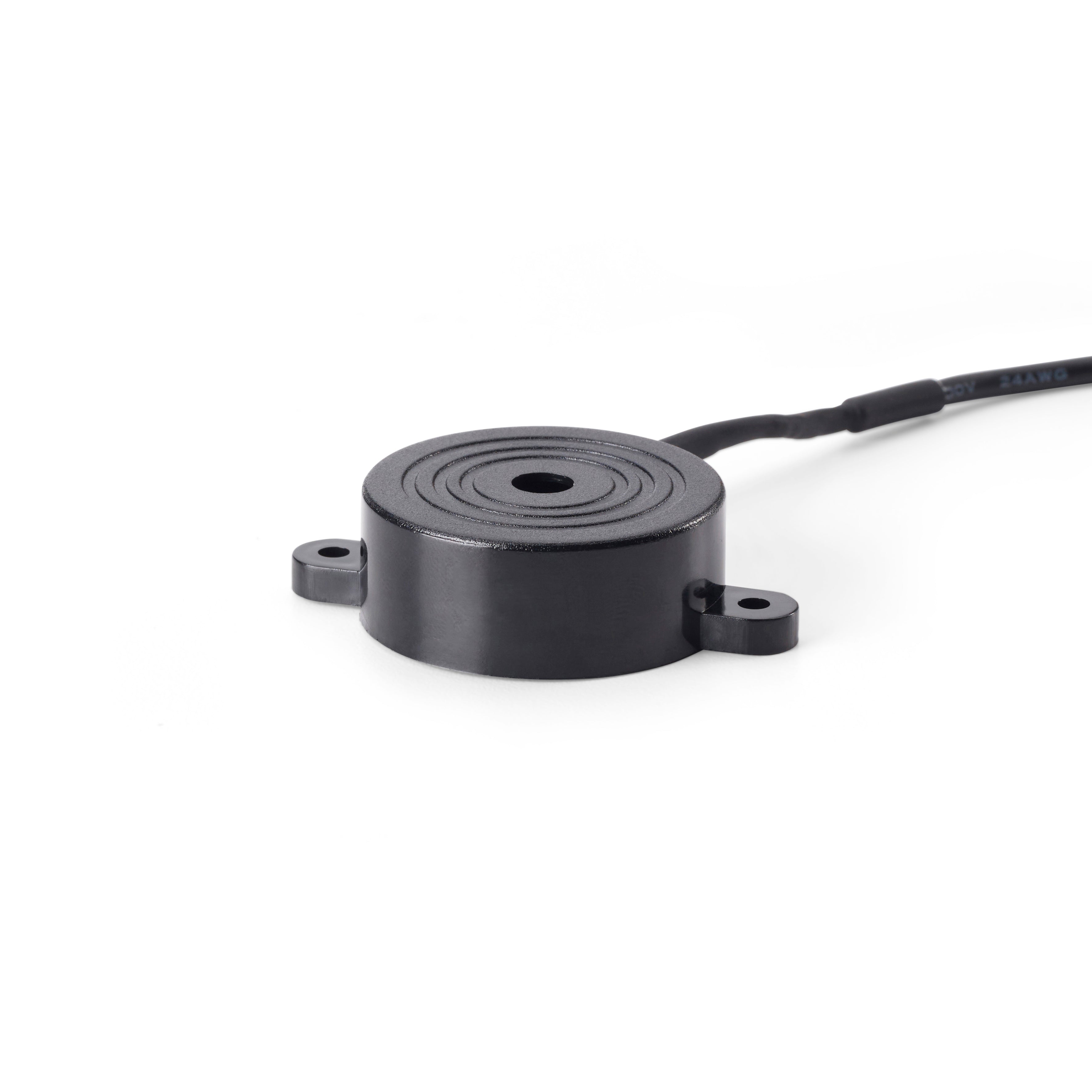

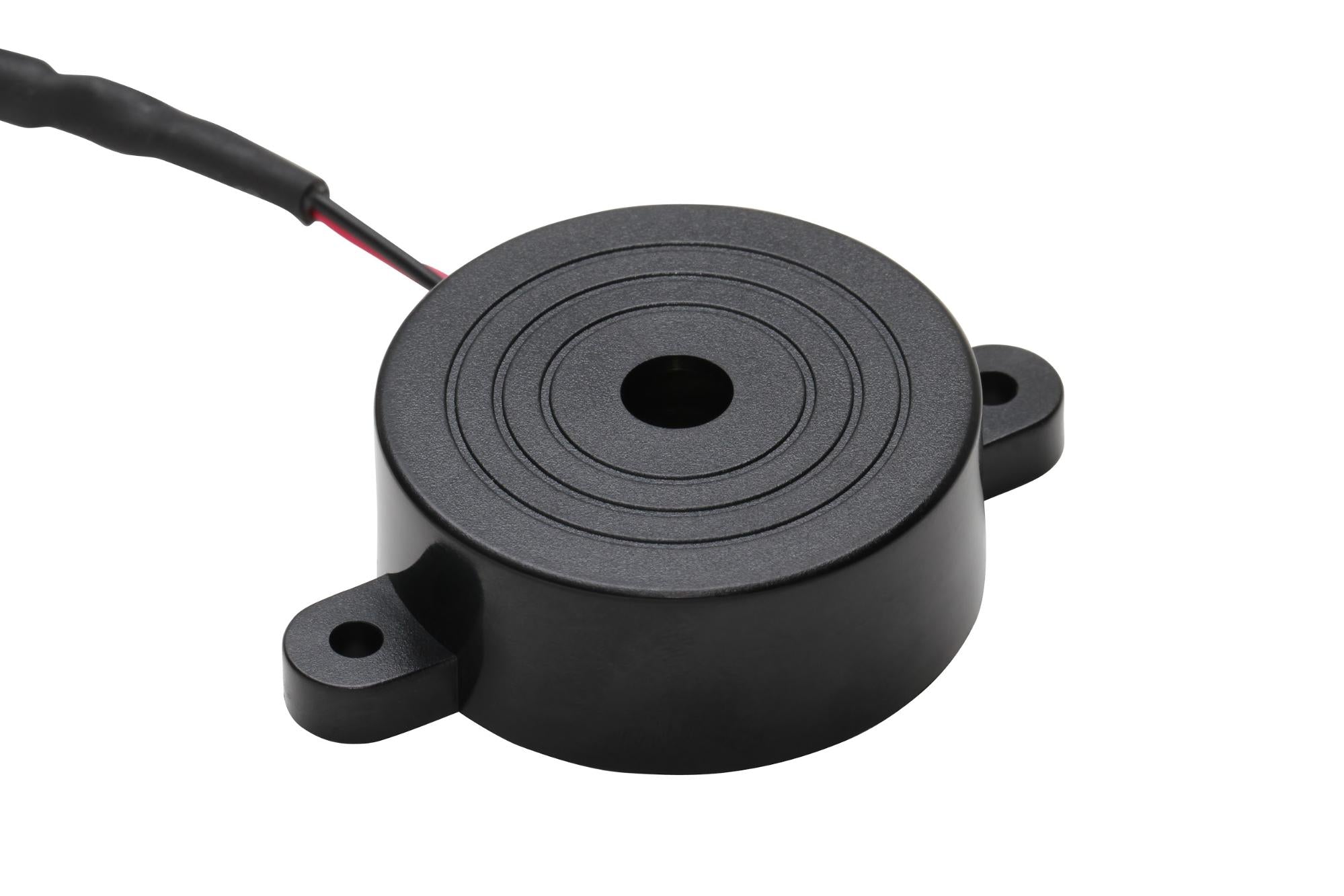

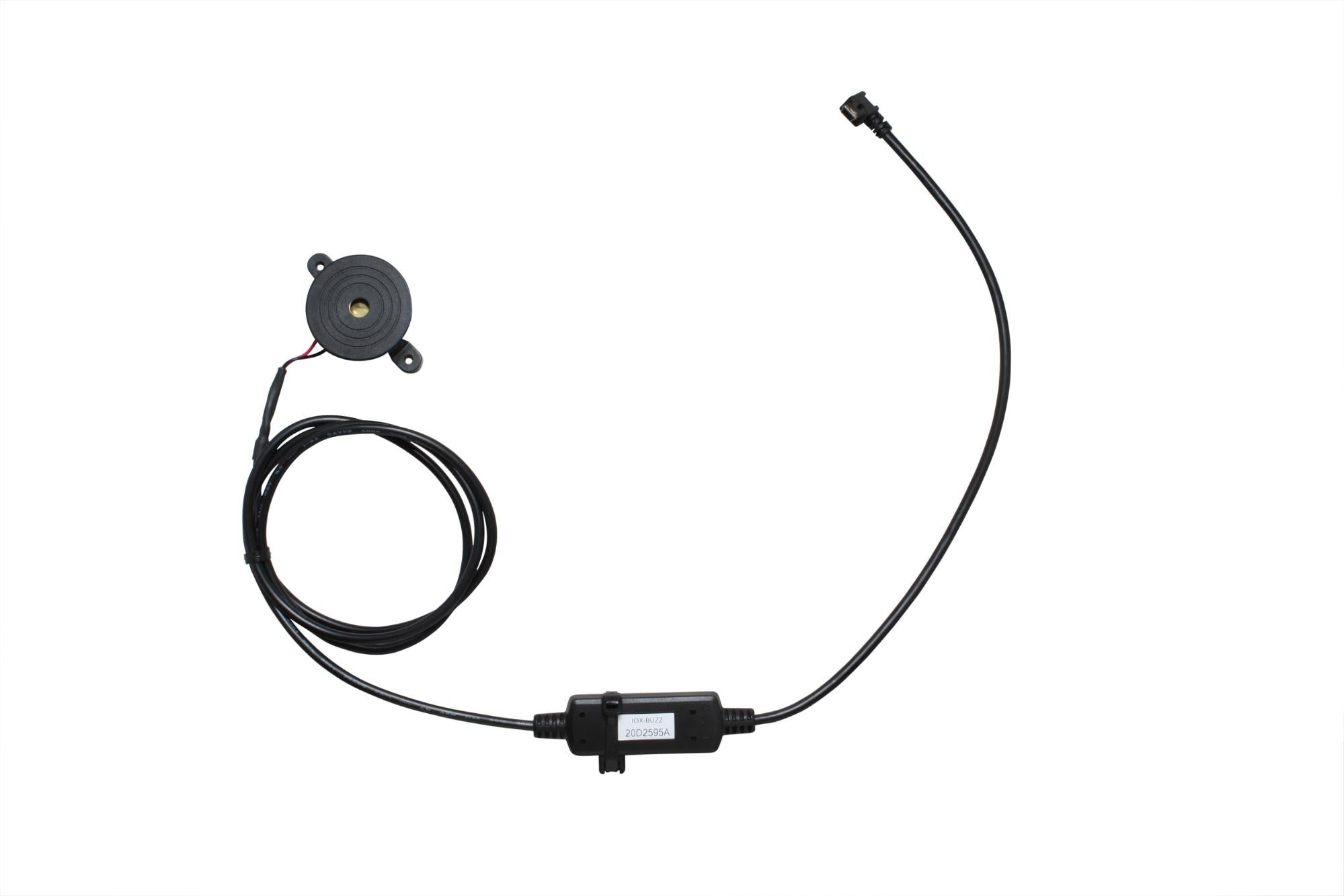

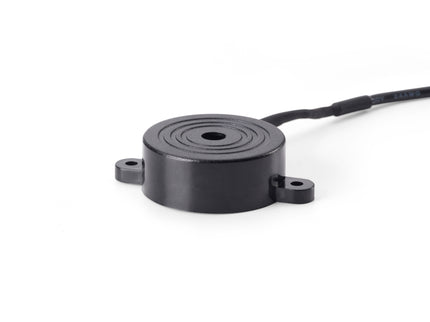

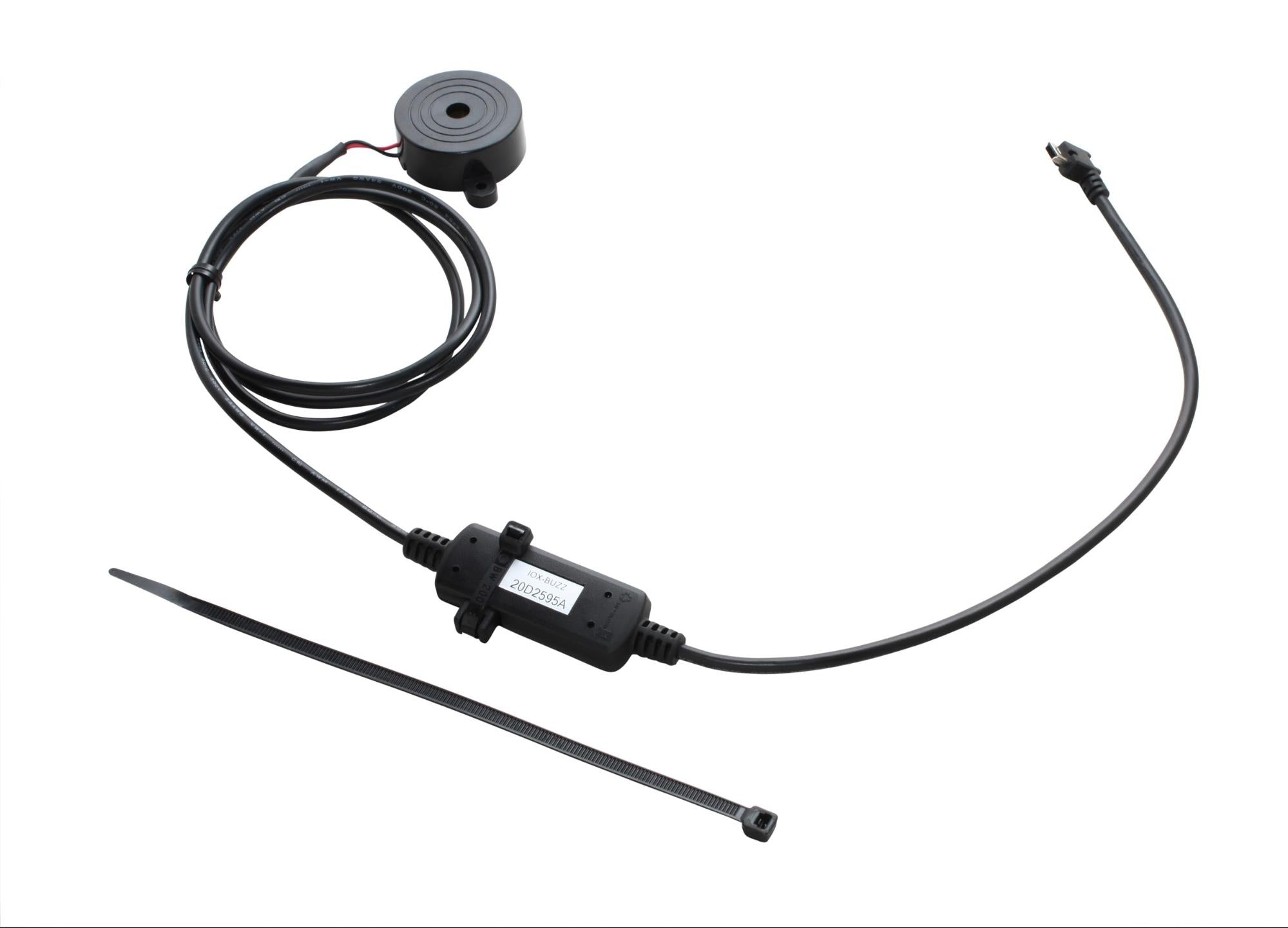

The IOX-BUZZ, an external buzzer, amplifies the in-vehicle audio feedback from the Geotab® GO™ device to reduce unheard alerts caused by engine noise. Audio feedback is emitted from both the internal GO device buzzer and the external IOX-BUZZ, enhancing the sound quality and ensuring the driver receives important alerts clearly and effectively.

Features

• Easy to install IOX® accessory for the Geotab GO device
• Provides high-volume audible alerts for drivers
• Improves communication clarity for operators of large vehicles
• Amplifies GO device sound to be heard clearly over engine noise

Product Specifications

• Weight: 96 g
• Size: Overall length: 2205 mm (L); Widest point: 60 mm (W) × 16 mm (H)
• Housing: PC+ABS clamshell casing
• Interfaces: CAN: 500 kbps (for daisy-chaining)
• Decibel Output: 75 dBA @ 30 cm
• Nominal Input Voltage: 12 V / 24 V
• Current Draw (IOX-BUZZ on GOx daisy chain):
  • Operating mode (typical): 40 mA at 12 V / 24 V
  • Operating mode (max): 100 mA at 12 V / 24 V
  • Sleep mode (min): 0.4 mA at 12 V / 24 V
• Temperature Rating: −40 ℃ to +85 ℃
• Connectors:
  • Male Mini-USB Type-B connector: Daisy chain power and CAN in
  • Female Mini-USB Type-B connector: Daisy chain power and CAN out
• Buzzer Wiring:
  • Red: Power
  • Black: Ground
• Installation: Male Mini-USB connector connects to the GO™ device or another IOX™
• Compatible Devices: All GO7® and newer devices and variants
• Power Limitations: GO9® can source a maximum total current to the IOX daisy chain of 2750 mA at 12 V / 24 V

Note: For each IOX in the daisy chain, add the maximum current draw and ensure the total does not exceed the maximum total IOX current limit.
