Description

The IOX-NFCREADERA integrates Near Field Communication (NFC) with the Geotab® GO™ device to:

• Identify drivers operating vehicles in a fleet at any given time. Users create rules, reports, and exceptions on MyGeotab™ based on individual drivers or vehicles.
• Enable vehicle access for Geotab Keyless Platform customers. Users can be granted authorization to unlock and lock vehicle doors.

Features

• Easy-to-install IOX™ into the Geotab GO device
• Assigns drivers to vehicles, enabling driver-based reporting
• Optional feature: Authorized Driver List — allowing only authorized driver ID tags/stickers to interact
• For Keyless customers, allow authorized users to lock and unlock vehicle doors

Product Specifications

• Weight: 148 g
• Size:
  • Overall Length: 1300 mm L

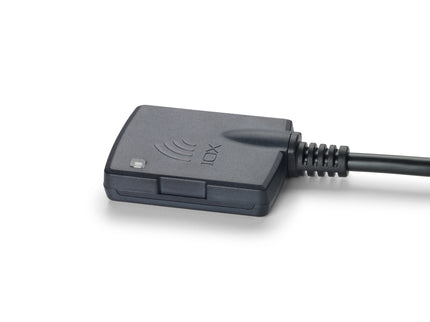

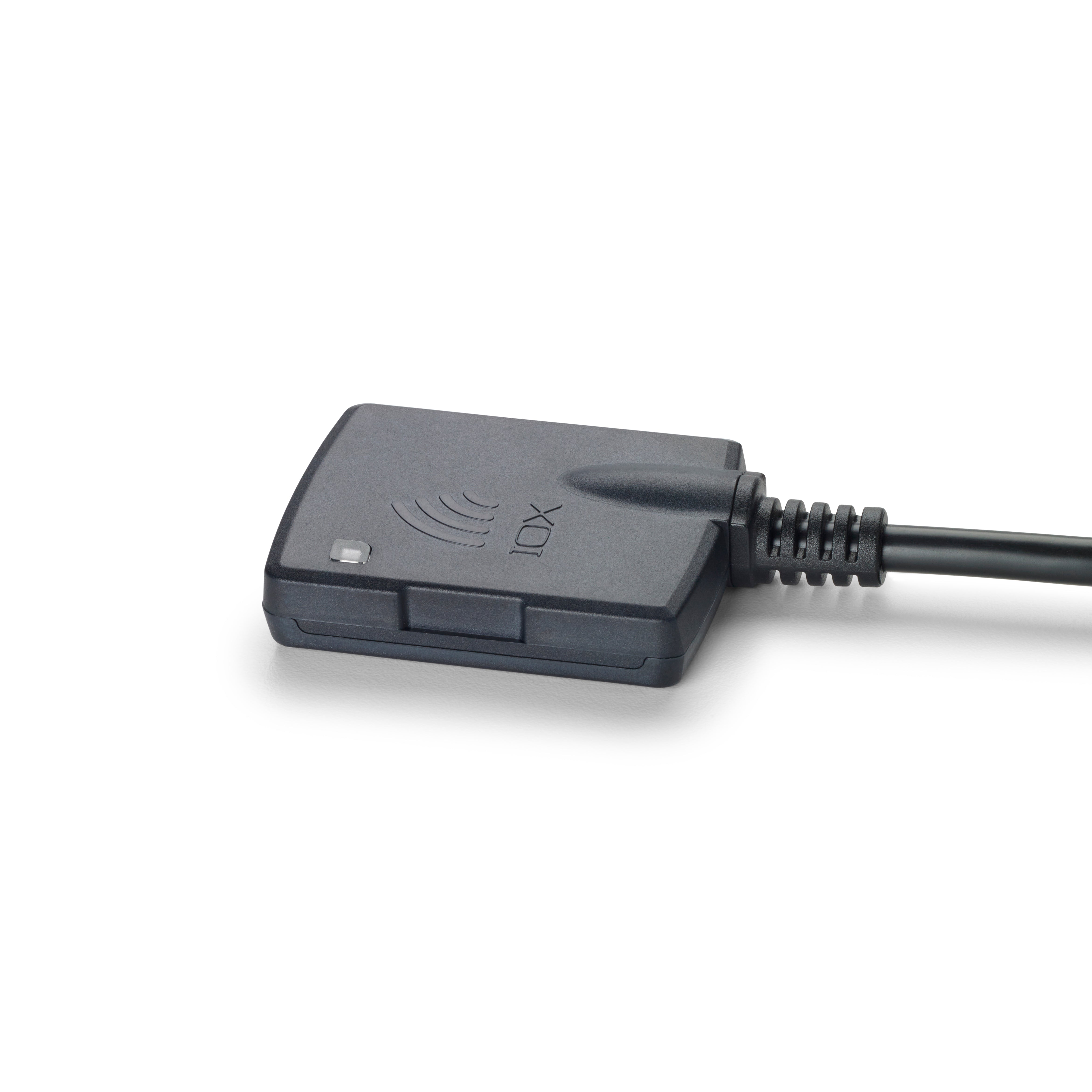

  • Widest Point (Antenna): 63 mm L × 49 mm W × 16.5 mm H
  • Widest Point (Connector): 53 mm W × 15 mm H
• Housing: Black, moisture-resistant thermoplastic overmold
• Interfaces: CAN: 500 kbps (for daisy-chaining), Ground Switch: For Relay Control
• Frequency: 13.56 MHz
• Nominal Input Voltage: 12 V / 24 V
• Power Output: Daisy Chaining: 2500 mA @ 12 V/24 V
• Current Rating:
  • Operating Mode: 100 mA
  • Sleep Mode: 1.1 mA
• Temperature Rating: −40 ℃ to +85 ℃
• Connectors:

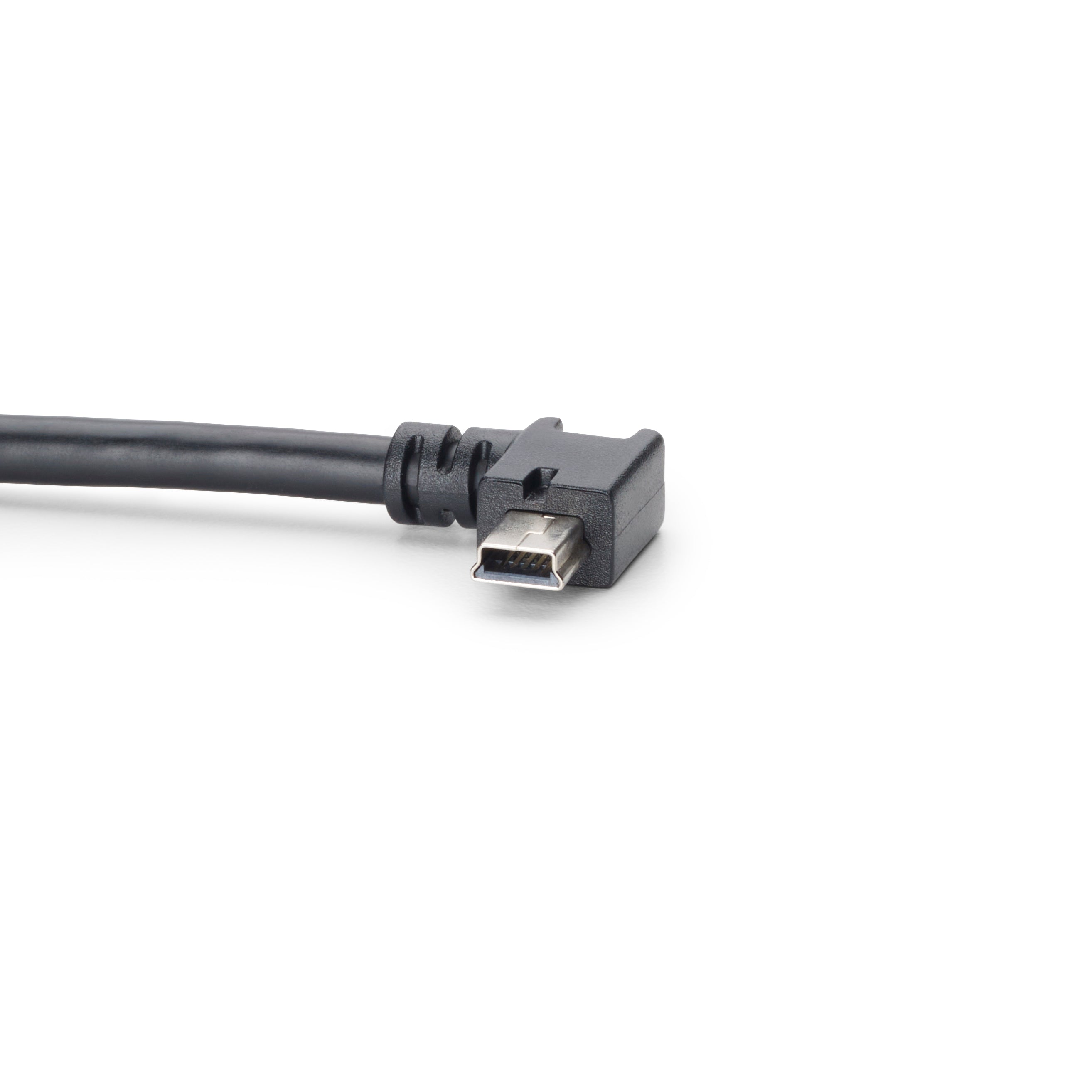

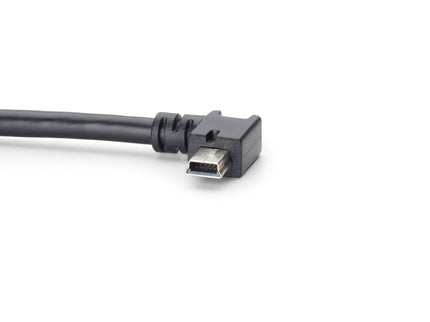

  • Male Mini-USB Type-B connector: Daisy chain power and CAN in
  • Female Mini-USB Type-B connector: Daisy chain power and CAN out
  • 2-pin grounding socket (Molex connector)
• Installation:
  • Male Mini-USB connector connects to the GO device or another IOX
  • Relay module connects to 2-pin socket
• Reading Distance:
  • With GEO-NFCSTKBLUA: 19 mm
  • With GEO-NFCFOBBLUA: 11 mm
  • With GEO-KLNFCFOB through a windshield (Keyless): 30 mm
• Compatible Devices:
  • Driver Identification: All GO7® and newer devices and variants
  • Keyless: Minimum GO9® and newer devices and variants

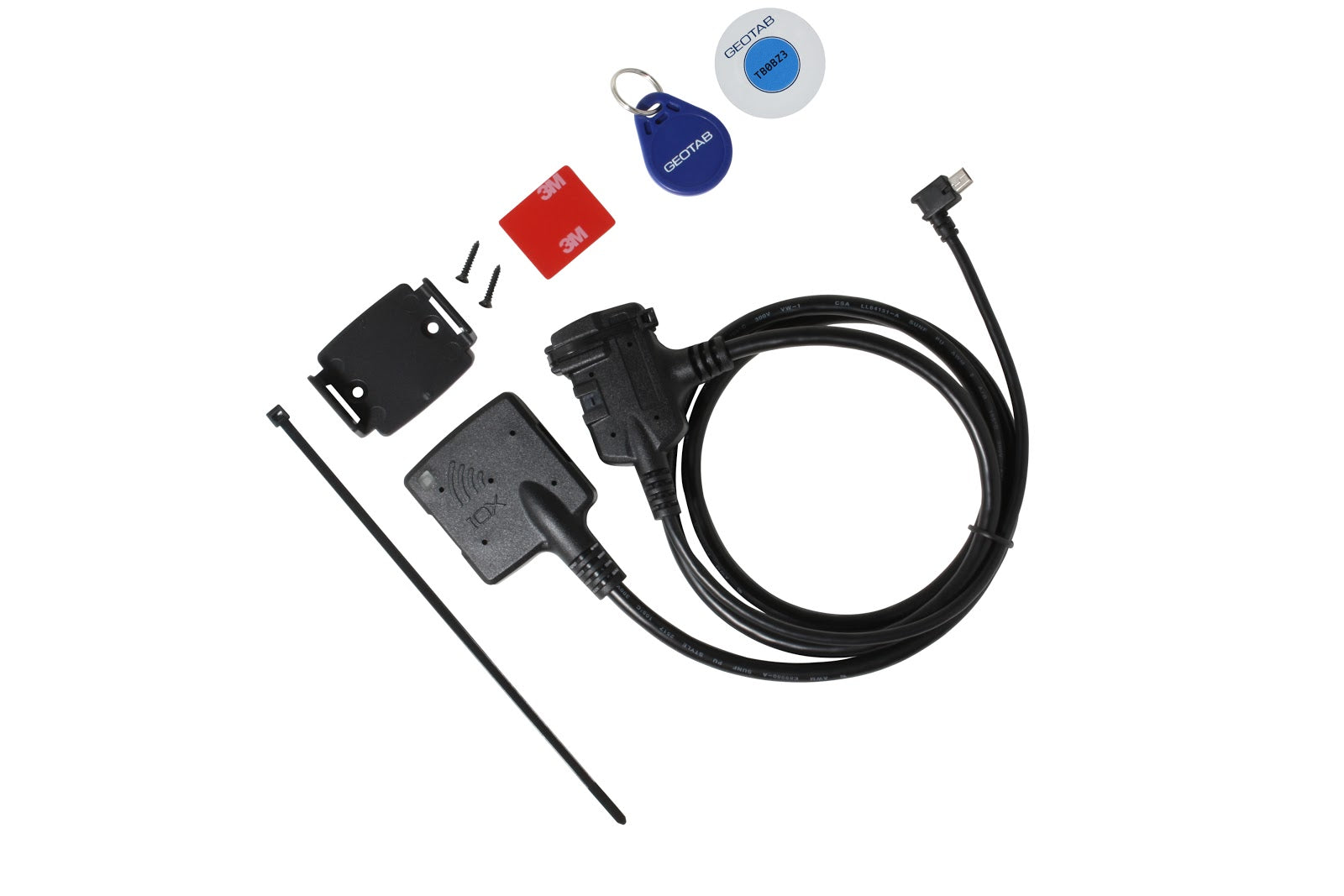

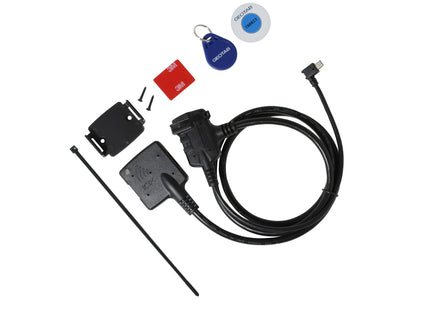

• Used in Conjunction With:
  • Driver identification:
    • GEO-NFCFOBBLUA: Driver ID fob (single fob)
    • GEO-NFCFOBBLUA20: Driver ID fob (package of 20 fobs)
    • GEO-NFCSTKBLUA: Driver ID sticker, 20mm/1.5” (single sticker)
    • GEO-NFCSTKBLUA20: Driver ID sticker, 20mm/1.5” (package of 20 stickers)
  • Keyless:
    • SPR-NFCBRKTV2ASY: Front-mounts IOX-NFCREADERA to a vehicle windshield
    • GEO-KLNFCFOB: Keyless NFC Tag
