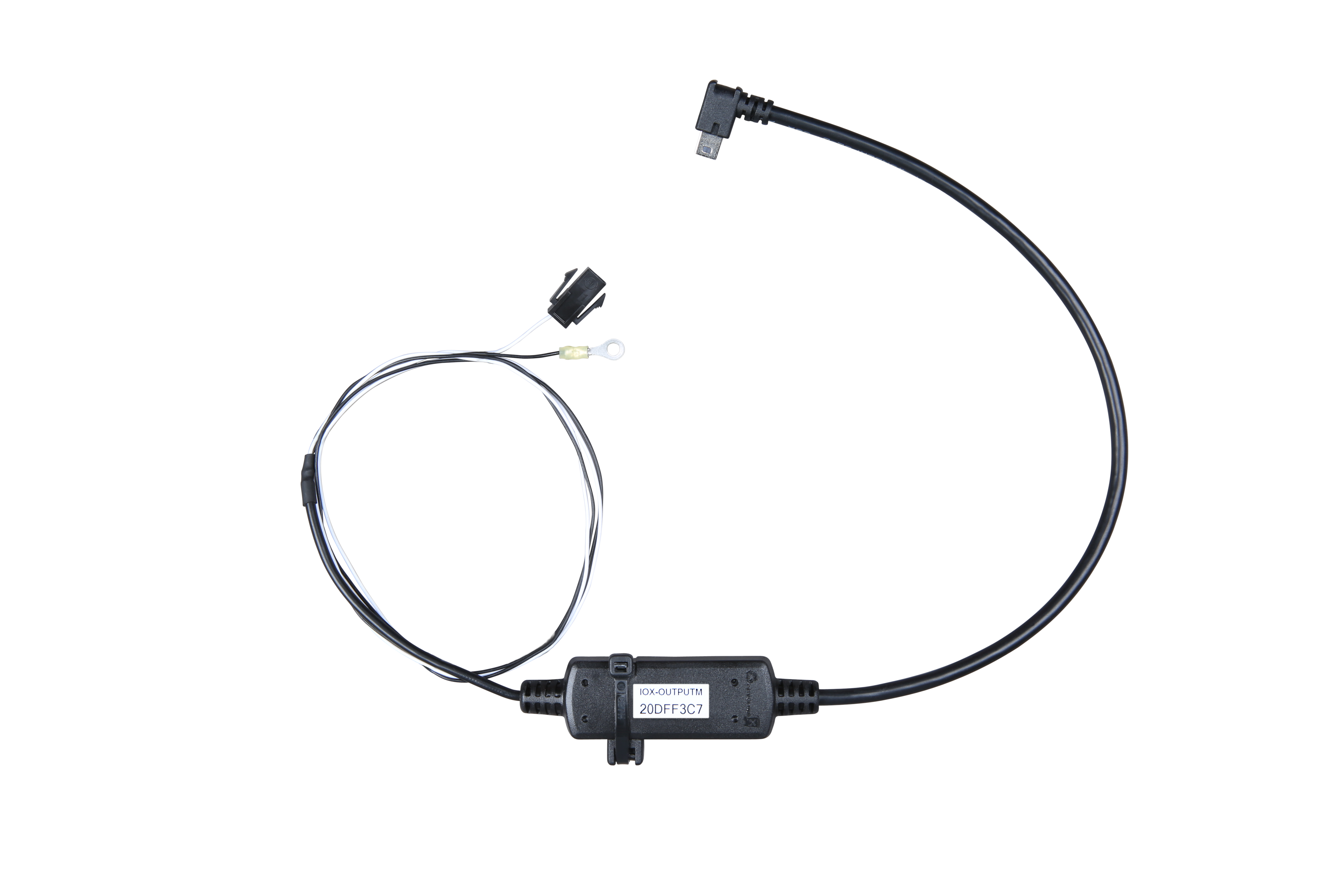

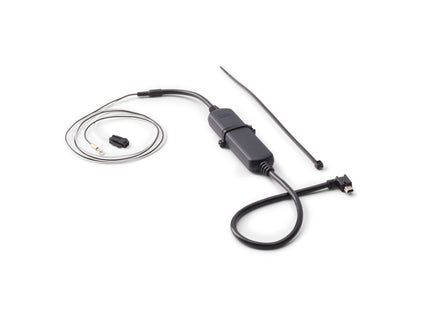

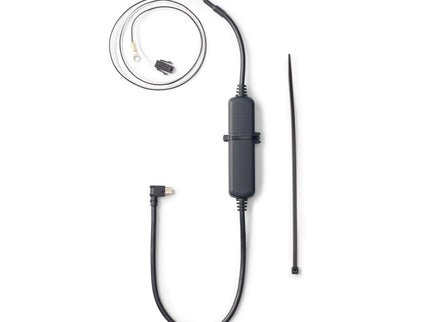

Description

The IOX-OUTPUTM allows the Geotab® GO™ device to control a relay from the vehicle in real-time. The user can set the IOX-OUTPUTM to trigger the relay when a predefined condition is met in MyGeotab™.

Features

• Supports 1 × 12 V or 24 V relay
• Compatible with SPR-RELAYKIT

WARNING! This product is not designed for use in a fail-safe manner. This product is not recommended for use in safety-critical applications.

Product Specifications

• Weight: 42 g
• Size: Overall Length: 1140 mm L, Widest Point: 31 mm W × 16 mm H
• Housing: PC+ABS clamshell casing
• Interfaces: CAN: 500 kbps (for daisy chaining)
• Output: 1 relay driver output wire (white) & 1 ground wire (black)
• Relay Specification:
  • 12 V (coil impedance > 80 ohms) or 24 V (coil impedance > 160 ohms)
  • Maximum Current: 150 mA
• Nominal Input Voltage: 12 V / 24 V
• Current Draw IOX-OUTPUTM on GOx daisy chain:
  • Operating mode (typical/nominal current draw): 40 mA at 12 V / 24 V
  • Operating mode (max. current draw): 100 mA at 12 V / 24 V
  • Sleep mode (min. current draw): 0.4 mA at 12 V / 24 V
• Temperature Rating: −40 ℃ to +85 ℃
• Connectors:
  • 2 × Labelled wires

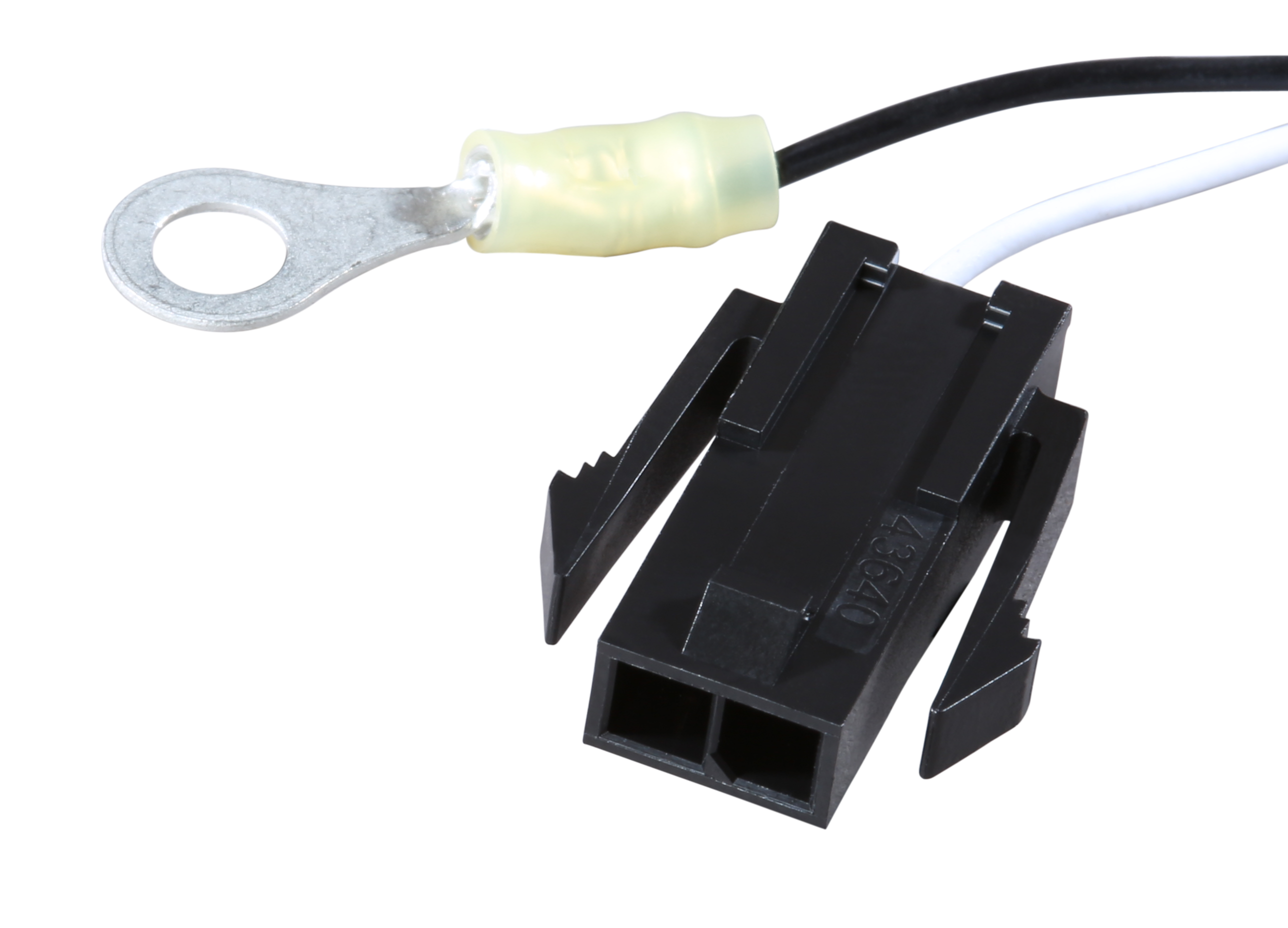

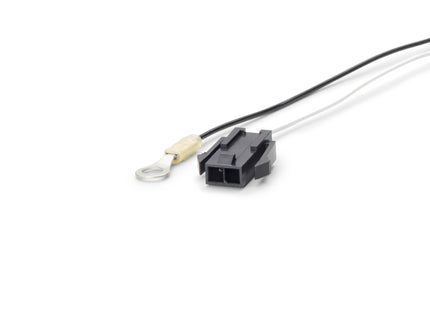

  • Molex Male 2-pin Connector 43640-0200 / Molex Male Terminal 43031-0001
  • White - OUTPUT1
  • Ring Terminal TE Connectivity 326875 Black - GND_OUT

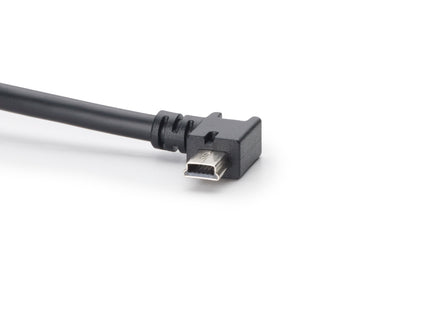

  • Male Mini-USB Type-B connector: Daisy chain power and CAN in
  • Female Mini-USB Type-B connector: Daisy chain power and CAN out
• Installation:
  • Male Mini-USB connector connects to the GO device or another IOX™ harness
  • Output wires connect to the intended circuit
• Compatible Devices:
  • All GO7® and newer devices and variants
  • GO9® can source a maximum total current to the IOX in Daisy Chain: 2750 mA at 12 V/24 V
• ✱ NOTE: For each IOX in the Daisy Chain, add the Max Current draw, and do not exceed the Max.Total IOX Current draw.
