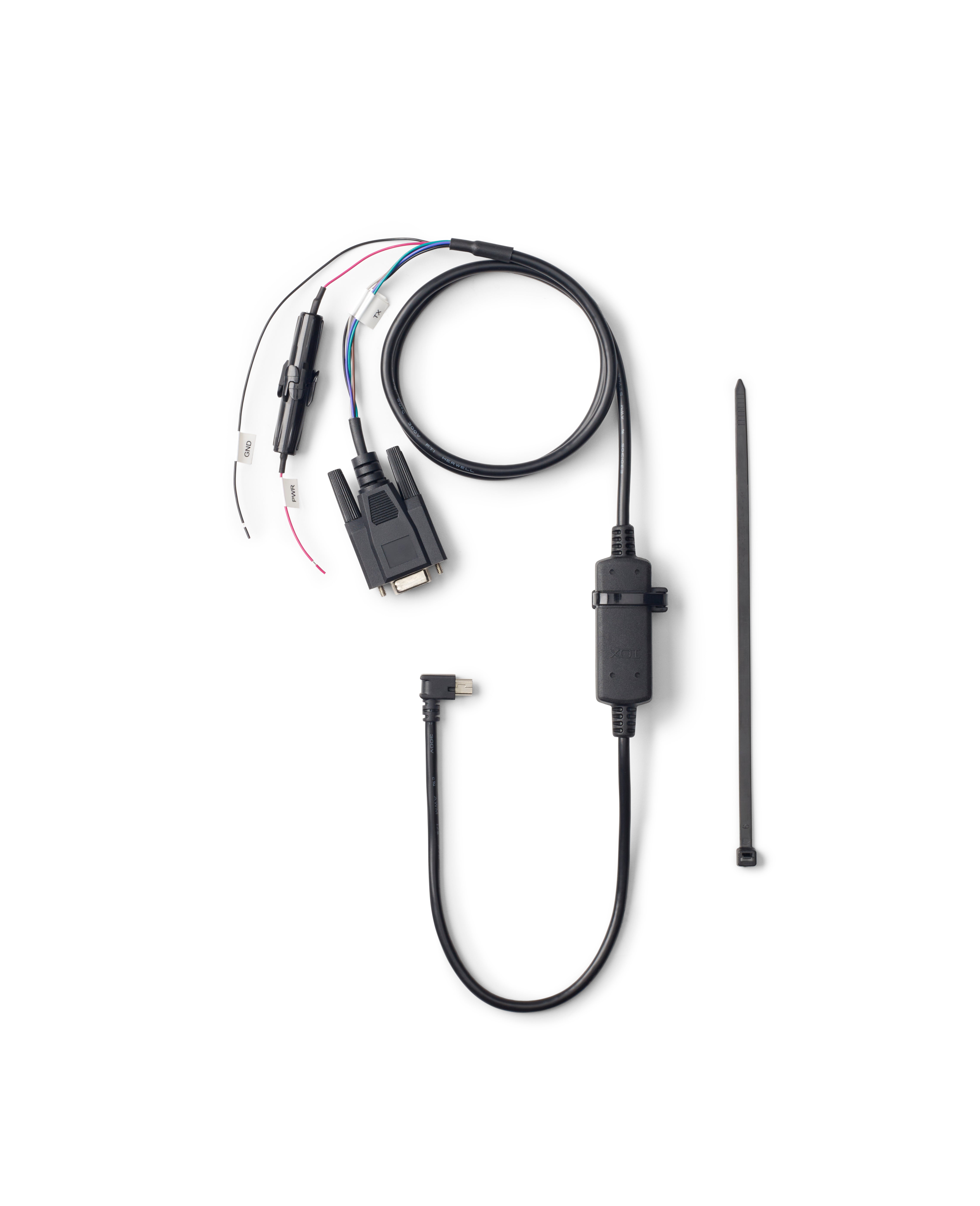

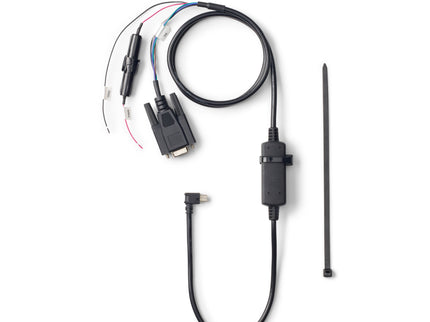

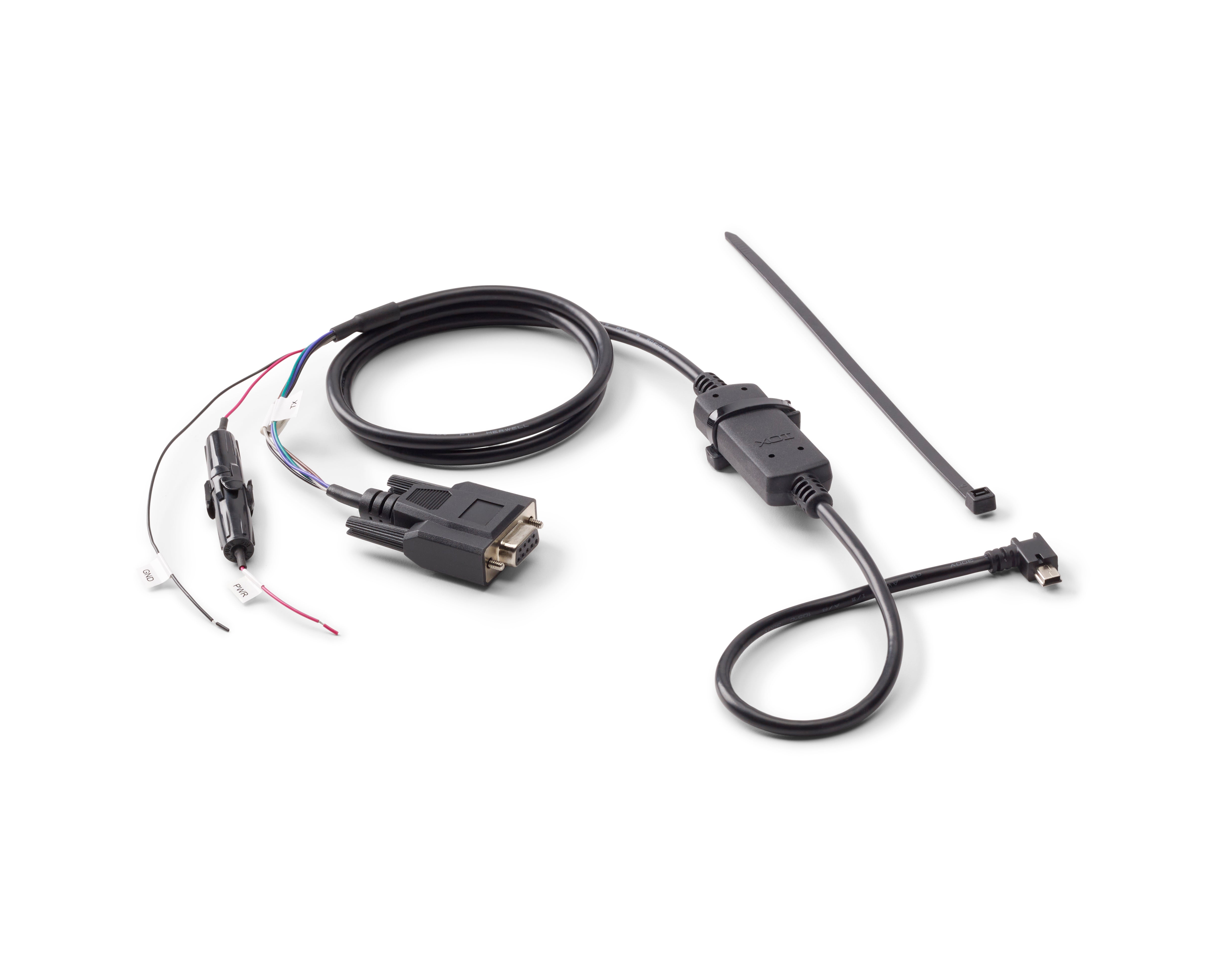

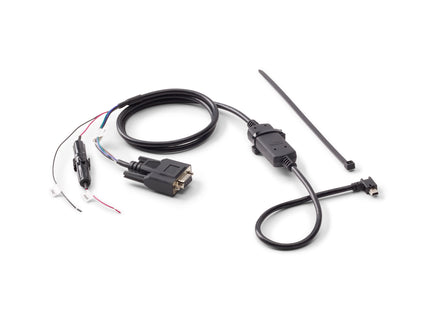

The IOX-RS232F allows external devices — gas detection monitors, weighing scales, or pressure monitors — to send data through the Geotab® GO™ device to MyGeotab™.

• Geotab SDK integration facilitates data extraction from MyGeotab™
• Compatible with Geotab’s standard third-party Add-On Protocol

• Functionality: Universal RS232 interface (DB9 connector). Includes flow control pins if required.
• Weight: 100 g
• Size: Overall Length: 1260 mm L, Widest Point: 34 mm W × 16 mm H
• Housing: PC+ABS clamshell casing
• Interfaces:
  • CAN: 500 kbps (for daisy chaining)
  • RS232 Female: 300 to 115,200 baud, parity, data bits, and flow control
  • RS232 Female: 300 to 115,200 baud, 8 data bits, and 1 stop bit
• Nominal Input Voltage: 12 V / 24 V
• Current Draw IOX-RS232 on GOx daisy chain:
  • Operating mode (typical/nominal current draw): 40 mA at 12 V / 24 V
  • Operating mode (max. current draw): 100 mA at 12 V / 24 V
  • Sleep mode (min. current draw): 0.4 mA at 12 V / 24 V
• Temperature Rating: −40 ℃ to +85 ℃
• Installation:

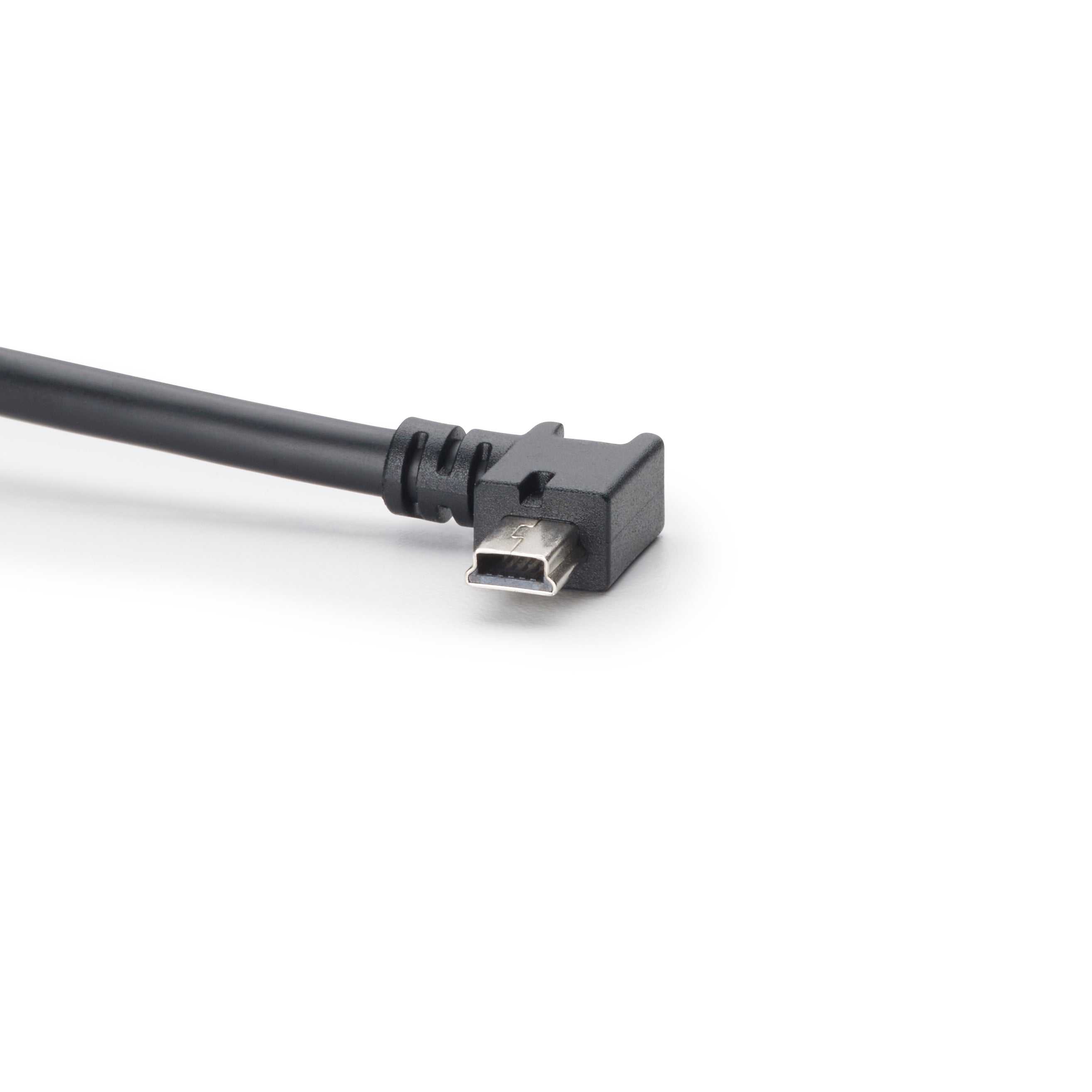

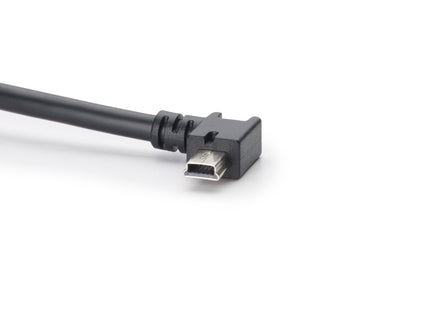

  • Male Mini-USB connector connects to the GO device or another IOX™

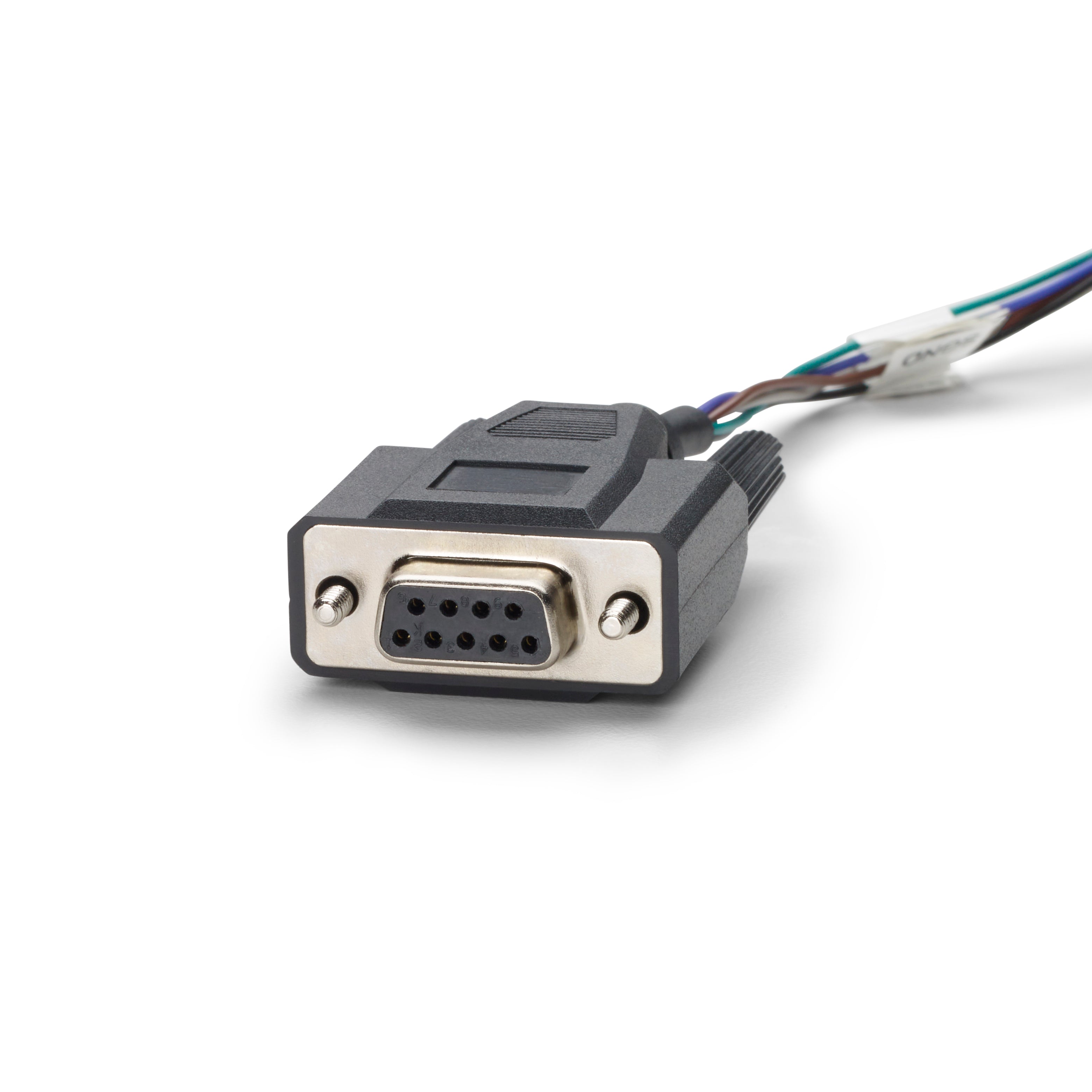

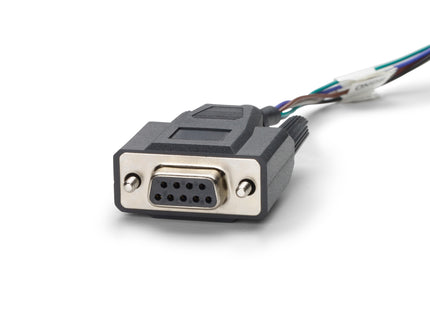

  • DB9 connects to a serial device
• Compatible Devices:
  • All GO7® and newer devices and variants
  • GO9® can source a maximum total current to the IOX in Daisy Chain: 2750 mA @ 12 V/24 V
• ✱ NOTE: For each IOX in the Daisy Chain, add the Max Current draw, and do not exceed the Max.Total IOX Current draw.
