Description

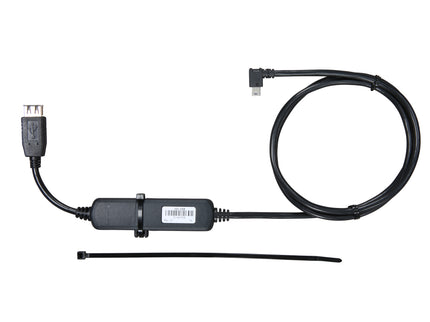

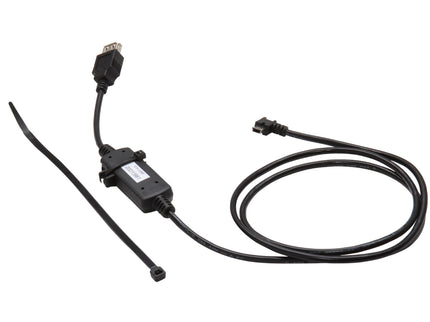

The IOX-USB includes an auxiliary USB power adapter for charging and powering USB devices. Constant power to the mobile device allows the driver to use battery-intensive applications while in the vehicle. The display of the tablet/phone powers on and off with the ignition.

✱ NOTE: The IOX-USBM is discontinued. Use the IOX-USB with the USB cable (recommended length of 1 meter) — supplied with your smartphone/tablet — to connect the IOX-USB to the Geotab GO™ device.

Features

• Easy-to-install IOX™ for the Geotab GO device
• Charges and provides constant power to USB devices
• Compatible with Geotab’s standard third-party Add-On Protocol

Product Specifications

• Weight: 64 g
• Size: Overall Length — 1190 mm L, Widest Point: 31 mm W × 16 mm H
• Housing: PC+ABS clamshell casing
• Interfaces:
  • CAN: 500 kbps (for daisy chaining)
  • USB: Data transfer or charging
• Nominal Input Voltage: 12 V / 24 V
• Power Output: 5 V / 1.5 A USB Charger
• Current Draw IOX-USB on GOx daisy chain:
  • Operating mode (typical/nominal current draw): 40 mA at 12 V / 24 V
  • Operating mode (max. current draw): 100 mA at 12 V / 24 V
  • Sleep mode (min. current draw): 0.4 mA at 12 V / 24 V
  • Without USB Load: 40 mA
  • With USB Load 500 mA: 290 mA
  • With USB Load 1000 mA: 540 mA
  • With USB Load 1500 mA: 800 mA
• Temperature Rating: −40 ℃ to +85 ℃
• Connectors:

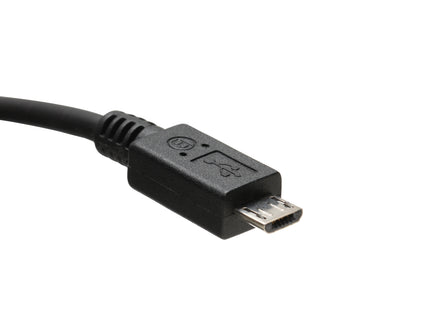

  • Male Mini-USB Type-B connector: Daisy chain power and CAN in
  • Female Mini-USB Type-B connector: Daisy chain power and CAN out
  • Female USB Type-A connector: USB charger
    • Red - Power
    • White - USB negative
    • Green - USB positive
    • Black - Ground
• Compatible Devices:
  • All GO7® and newer devices and variants
  • GO9 can source a maximum total current to the IOX in Daisy Chain: 2750 mA at 12 V/24 V
• ✱ NOTE: For each IOX in the Daisy Chain, add the Max Current draw, and do not exceed the Max.Total IOX Current draw.
