Description

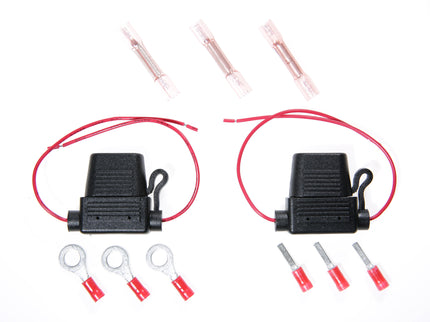

8-wire harness kit for the GO RUGGED device. The kit contains the harness and a fuse kit. Includes the HRN-RW08S1.
Product Specifications
- Documentation: Installation Instructions
- PIN Definition: Red - Power Source, Black - Vehicle ground, Blue - J1939+/CAN High, White - J1939-/CAN Low, Brown - J1850-/J1708+, Green - J1850+/J1708-, Orange - ISO K-line, Grey - ISO L-line
- Length: 16.5 centimeters / 6.5 inches
- Max length of connected cables: 2 meters / 6.5 feet

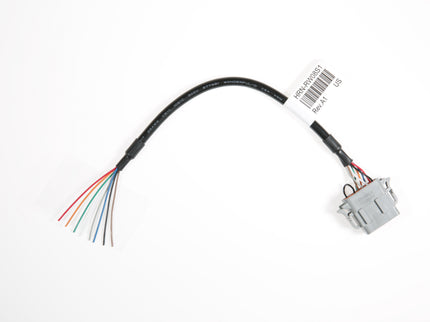

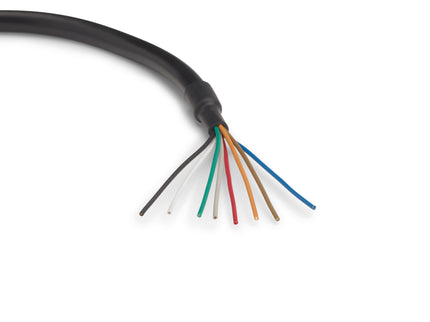

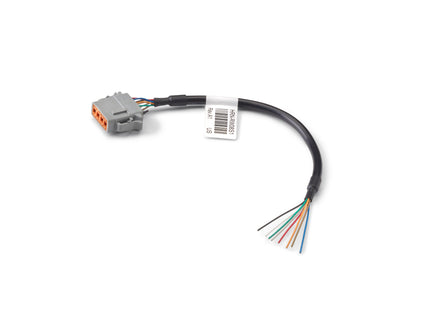

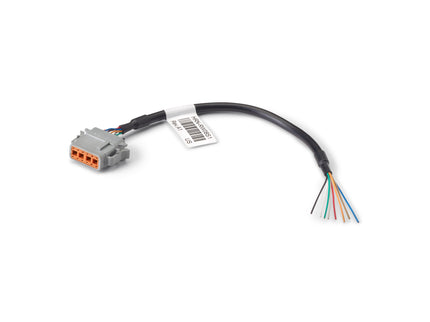

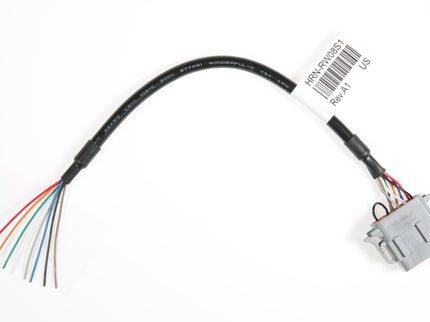

Geotab 8-wire harness kit for GO RUGGED. The kit contains the harness and a fuse kit.
$34.00Excl. Tax
