Description

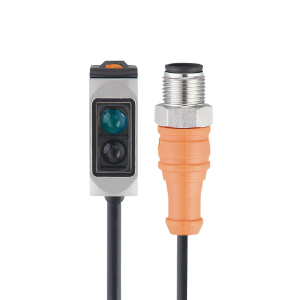

This sensor is a diffuse reflection type photoelectric sensor designed for precise object detection with a clearly defined light spot and no scattered light interference. It offers excellent optical performance at a competitive price and is suitable for environments with highly reflective backgrounds, such as moving machine parts. The sensor includes light-on/dark-on mode selection and is housed in a robust stainless-steel casing for industrial use.

Key Features

• Robust stainless-steel housing for transportation and logistics applications
• Resistant to high-pressure cleaning with aggressive cleaning agents
• High protection rating for harsh industrial environments
• Intuitive setting of range and output function
• Compact housing for restricted spaces
• Range is independent of object color

Product Specifications

• Operating Principle: Diffuse-reflection sensor
• Range Max: 0.5 m
• Type: Rectangular
• Operating Distance: 5–500 mm
• Type of Light: Red light
• Wavelength: 633 nm
• Light Spot: 15 mm (at sensing range)
• Adjustment: Knobs
• Function Display: LED

Electrical Data

• Operating Voltage: 10–30 V DC
• Output: PNP
• Output Function: Light-on/dark-on
• Output Current Max: 100 mA
• Switching Frequency: 1000 Hz
• Short-circuit Protection: Yes
• Reverse Polarity Protection: Yes

Mechanical Data

• Size: 13 × 35 mm (0.11 × 1.37 in)
• Total Length: 21 mm (0.82 in)
• Connection: 0.3 m PVC cable with M12 connector (rotatable)
• Housing Material: V4A (1.4404)
• Material of Lens: PMM

Ambient Conditions

• Ambient Temperature: -25 °C to 80 °C
• Protection Rating: IP67 / IP68 / IP69K
• Application: Transportation and Logistics industry
